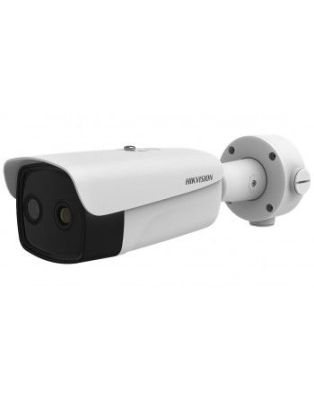

Hikvision Digital DS-2TD2636B-15/P security camera IP security camera Indoor Bullet Ceiling/Wall/Pole 2688 x 1520 pixels
In Stock
|
SPECIFICATIONS
Product Description
Hikvision Fever Screening Thermal & Optical Network Bullet Camera DS-2TD2636B-15/P
Device Type
Thermal / network surveillance camera - fixed - indoor
Audio
Yes
Dimensions (WxDxH)
4.7 in x 14.8 in x 4.6 in
Weight
4.01 lbs
Connectivity Technology
Wired
Camera
Color - Day&Night - NTSC PAL
Max Resolution
2688 x 1520 (optical) / 384 x 288 (thermal)
Frame Rate (max)
30 frames per second
Optical Sensor Type
Uncooled VOx FPA / PS CMOS - 1/2.7"
Minimum Illumination
0.0089 lux - color - F1.6 - AGC on ¦ 0.0018 lux - B&W - F1.6 - AGC on
Focal Length Control
Fixed focal
Focal Length
6 mm
Lens Iris
F/1.6
Interfaces
Composite video Ethernet 10Base-T/100Base-TX
Voltage
DC 12 V / AC 24 V / PoE Class 3
Environmental Parameters (operating)
50 °F - 95 °F; 0 - 95% relative humidity
General
Device Type
Thermal / network surveillance camera
Audio Support
Yes
Audio Formats
PCM G.726 G.722.1 MP2L2 G711u G711a
Connectivity Technology
Wired
Width
4.7 in
Depth
14.8 in
Height
4.6 in
Weight
4.01 lbs
Camera
Type
Color - Day&Night - fixed - indoor
Video Format
NTSC PAL
Digital Video Format
MJPEG H.264 H.265
Max Digital Video Resolution
2688 x 1520 (optical) / 384 x 288 (thermal)
Exposure Range
1 sec - 1/100000 sec
Minimum Illumination
0.0089 lux - color - F1.6 - AGC on ¦ 0.0018 lux - B&W - F1.6 - AGC on
Digital Video Capture Resolution
1280 x 720 1920 x 1080 2688 x 1520
Frame Rate (max)
30 frames per second
Image Sensor
Type
Uncooled VOx FPA / PS CMOS 1/2.7"
Lens Construction
Type
Fixed focal
Focal Length
6 mm
Lens Iris
F/1.6
Horizontal Field of View (degree)
51.7
Vertical Field of View (degree)
28
Interfaces
Video
Composite video
Network Interface
Ethernet 10Base-T/100Base-TX
Alarm Inputs Qty
2
Alarm Outputs Qty
2
Expansion / Connectivity
Ports
LAN/power ¦ Audio line in ¦ Composite video - BNC
Supported Memory Cards
microSD Card microSDHC Card microSDXC Card
Miscellaneous
Compliant Standards
IP66
Power
Power Requirements
DC 12 V / AC 24 V / PoE Class 3
Power Device
9.5 Watt
Environmental Parameters
Min Operating Temperature
50 °F
Max Operating Temperature
95 °F
Relative Humidity (operating)
0 - 95%
Hikvision Digital DS-2TD2636B-15/P security camera IP security camera Indoor Bullet Ceiling/Wall/Pole 2688 x 1520 pixels
| Length | 37.59 in |
| Width | 11.94 in |
| Height | 11.68 in |
| Weight | 1.820000 lbs |
