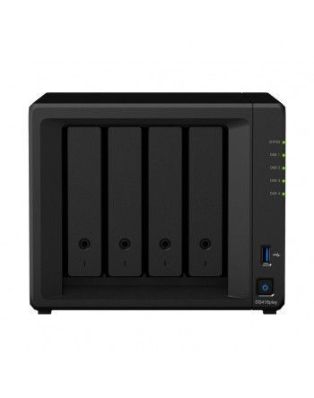

Synology DiskStation DS418play Ethernet LAN Desktop Black NAS
In Stock
|
Specifications
Storage
Storage drives installed
No
Installed storage drive type
No
Supported storage drive types
HDD-SSD
Number of storage drives supported
4
Hot-swap drive bays
Yes
RAID support
Yes
Supported file systems
FAT-HFS+-NTFS-ext3-ext4
RAID levels
0-1-5-6-10-JBOD
Supported storage drive interfaces
Serial ATA-Serial ATA II-Serial ATA III
Storage drive sizes supported
2.5-3.5"
Processor
Tjunction
105 ‚°C
Thermal Design Power (TDP)
10 W
System bus rate
5 GT/s
Stepping
B1
Processor threads
2
Processor socket
BGA 1296
Processor package size
24 x 31 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Apollo Lake
Processor code
SR2Z8
Processor cache type
Smart Cache
Processor cache
2 MB
Processor boost frequency
2.50 GHz
PCI Express slots version
2
PCI Express configurations
1x2+2x1-4x1
ECC supported by processor
No
CPU configuration (max)
1
Maximum internal memory supported by processor
8 GB
Conflict Free processor
Yes
Processor ARK ID
95597
Processor frequency
2.00 GHz
Processor family
Intel‚ Celeron‚
Processor model
J3355
Processor cores
2
Memory
Internal memory type
DDR3L
Internal memory
2 GB
Networking
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Wi-Fi
No
Wake-on-LAN ready
Yes
iSCSI support
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
2
Hard drive
RAID support
Yes
Supported file systems
FAT-HFS+-NTFS-ext3-ext4
RAID levels
0-1-5-6-10-JBOD
Graphics
On-board graphics adapter model
Intel‚ HD Graphics 500
On-board graphics adapter burst frequency
700 MHz
On-board graphics adapter base frequency
250 MHz
Maximum on-board graphics adapter memory
8 GB
Number of displays supported (on-board graphics)
3
Design
Cooling type
Active
Product colour
Black
Number of fans
2 fan(s)
Chassis type
Desktop
Technical details
Type
NAS
Device class
Home & Home Office
Backup function
Yes
Product colour
Black
Number of users
100 user(s)
Noise level
20.5 dB
Chassis type
Desktop
Number of fans
2 fan(s)
Performance
Type
NAS
Device class
Home & Home Office
Backup function
Yes
Number of users
100 user(s)
Noise level
20.5 dB
Intel inside
Yes
Cooling
Cooling type
Active
Number of fans
2 fan(s)
Power
Power supply unit (PSU) capacity
90 W
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
29.01 W
Power consumption (sleep)
5.57 W
External power adapter
Yes
Weight & dimensions
Width
199 mm
Depth
223 mm
Height
166 mm
Weight
2.23 kg
Packaging content
Quick installation guide
Yes
External power adapter
Yes
Cables included
AC-LAN (RJ-45)
Processor special features
UART
Yes
Thermal Monitoring Technologies
Yes
Number of execution units
12
Maximum number of PCI Express lanes
6
Intel‚ Wireless Display (Intel‚ WiDi)
No
Intel‚ Turbo Boost Technology
No
Intel‚ Smart Response Technology
No
Intel‚ Small Business Advantage (Intel‚ SBA)
No
Intel‚ Secure Key
Yes
Intel‚ Quick Sync Video Technology
Yes
Intel‚ OS Guard
No
Intel‚ InTru€ž 3D Technology
No
Intel‚ Insider€ž
No
Intel‚ Identity Protection Technology (Intel‚ IPT)
Yes
Intel‚ Hyper Threading Technology (Intel‚ HT Technology)
No
Intel‚ High Definition Audio (Intel‚ HD Audio)
Yes
Intel‚ Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
Intel‚ Clear Video HD Technology (Intel‚ CVT HD)
Yes
Intel‚ Anti-Theft Technology (Intel‚ AT)
No
Intel‚ AES New Instructions (Intel‚ AES-NI)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Trusted Execution Technology
No
Intel Stable Image Platform Program (SIPP)
No
Intel Smart Connect Technology
No
Intel Secure Boot
Yes
Intel Rapid Storage Technology
No
Intel Enhanced Halt State
Yes
Intel Clear Video Technology
Yes
Intel 64
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
Embedded options available
No
Memory channels supported by processor
Dual
Memory types supported by processor
DDR3L-LPDDR3-SDRAM-LPDDR4-SDRAM
Home Networking (by Intel)
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 ‚°C
Operating temperature (T-T)
5 - 40 ‚°C
Operating relative humidity (H-H)
5 - 95%
Certificates
RoHS compliance
Yes
Packaging data
Cables included
AC-LAN (RJ-45)
Synology DiskStation DS418play Ethernet LAN Desktop Black NAS
| Length | 22.30 in |
| Width | 19.90 in |
| Height | 16.60 in |
| Weight | 2.230000 lbs |
