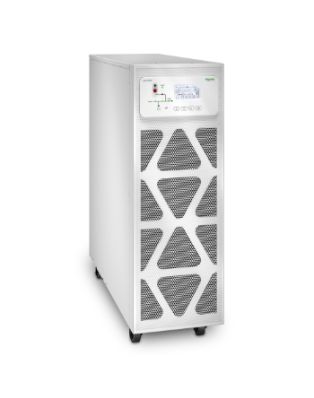

APC Easy 3S Double-conversion (Online) 40 kVA 40000 W
In Stock
|
Power
Input power factor
0.99
Output power
40000 W
Input operation voltage (min)
304 V
Input operation voltage (max)
477 V
Output operation voltage (min)
380 V
Output operation voltage (max)
415 V
Maximum current
73 A
Output voltage Total Harmonic Distortion (THD)
0.03
Input current Total Harmonic Distortion (THD)
0.03
Crest factor
0.12569444444444
Output power capacity
40000 VA
Performance
UPS topology
Double-conversion (Online)
Number of output phases
3
Number of input phases
3
Noise level
63 dB
Overload capacity (10 minutes)
1.25
Overload capacity (1 minute)
1.5
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Number of output phases
3
Number of input phases
3
Input power factor
0.99
Output power
40000 W
Input operation voltage (min)
304 V
Input operation voltage (max)
477 V
Output operation voltage (min)
380 V
Output operation voltage (max)
415 V
Maximum current
73 A
Output voltage Total Harmonic Distortion (THD)
0.03
Noise level
63 dB
Input current Total Harmonic Distortion (THD)
0.03
Crest factor
0.12569444444444
Output power capacity
40000 VA
Overload capacity (10 minutes)
1.25
Overload capacity (1 minute)
1.5
Input frequency
45/65 Hz
Design
International Protection (IP) code
IP20
Form factor
Tower
Product colour
White
Certification
CE EAC IEC 62040-1-1 IEC 62040-2 IEC 62040-3 IEC 62040-4 ISTA 2B RCM WEEE REACH
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 984.3 m
Non-operating altitude
0 - 14763.6 m
Technical details
Output voltage
400 V
Output frequency
50/60 Hz
Sustainability certificates
RoHS
Weight & dimensions
Weight
70 kg
Width
250 mm
Height
770 mm
Depth
900 mm
Package width
400 mm
Package depth
1050 mm
Package height
1015 mm
Package weight
86 kg
APC Easy 3S Double-conversion (Online) 40 kVA 40000 W
| Length | 90.00 in |
| Width | 25.00 in |
| Height | 77.00 in |
| Weight | 70.000000 lbs |
