Ethernet LAN features
Ethernet WAN
Yes
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
DSL features
DSL WAN
No
Mobile network
SIM card slot
No
3G/4G USB modem compatibility
No
3G
No
4G
No
Network
Guest access
Yes
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN
Yes
Networking standards
IEEE 802.3af
Ethernet LAN data rates
10-100-1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Performance
Windows operating systems supported
Windows 10-Windows 7-Windows 8-Windows Vista-Windows XP
Linux operating systems supported
Yes
Memory card slot(s)
No
Packaging content
Quick start guide
Yes
Package type
Box
Manual
Yes
AC adapter included
Yes
Quick installation guide
Yes
Number of products included
1 pc(s)
WAN connection
Ethernet WAN
Yes
DSL WAN
No
SIM card slot
No
3G/4G USB modem compatibility
No
Wireless LAN features
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)
867 Mbit/s
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band)
300 Mbit/s
WLAN data transfer rate (second band)
867 Mbit/s
Wi-Fi standards
802.11a-802.11b-802.11g-Wi-Fi 4 (802.11n)-Wi-Fi 5 (802.11ac)
Ports & interfaces
USB port
No
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Memory card slot(s)
No
Management features
Web-based management
Yes
Reset button
Yes
Quality of Service (QoS) support
Yes
Security
Security algorithms
64-bit WEP-128-bit WEP-152-bit WEP-SSID-WPA-WPA-PSK-WPA2-WPA2-PSK
Guest access
Yes
Design
Product type
Portable router
Wall mountable
Yes
On/off switch
Yes
LED indicators
Power- WLAN
Product colour
White
Indication light
Yes
Software
Windows operating systems supported
Windows 10-Windows 7-Windows 8-Windows Vista-Windows XP
Linux operating systems supported
Yes
Antenna
Antenna type
Internal
Transmit power
CE:≤20dBm(2.4GHz-EIRP)- ≤23dBm(5GHz-EIRP)- FCC:≤24dBm(2.4GHz)- ≤22dBm(5GHz)
Power
Power supply
10.15 W
Power source type
AC
Output voltage
12 V
Output current
1.5 A
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
System requirements
Windows operating systems supported
Windows 10-Windows 7-Windows 8-Windows Vista-Windows XP
Linux operating systems supported
Yes
Weight & dimensions
Width
180 mm
Height
47.5 mm
Depth
180 mm
Packaging data
Quick start guide
Yes
Package type
Box
Manual
Yes
AC adapter included
Yes
Quick installation guide
Yes
Number of products included
1 pc(s)

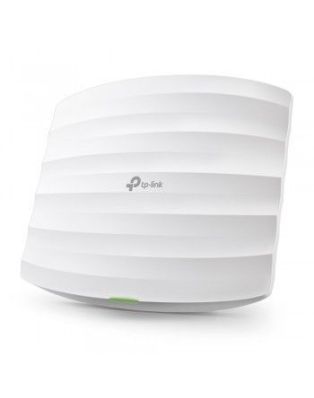

TP-LINK AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
Weight | 1.010000 lbs |
