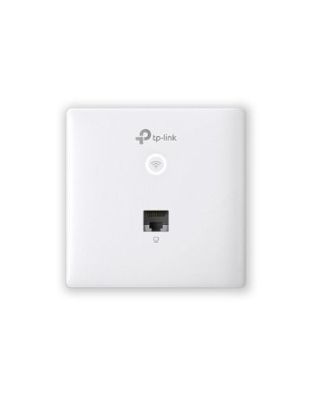

Omada EAP230 - V1 - Wireless Router - GigE, 802.11ac Wave 2
In Stock
|
Data transmission
Ethernet LAN data rates
10-100-1000 Mbit/s
Maximum data transfer rate
1000 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Automatic channel selection
Yes
Syslog
Yes
Web-based management
Yes
VLAN support
Yes
Rate limiting
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11ac-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n
Ethernet LAN data rates
10-100-1000 Mbit/s
Certification
CE- RoHS
Maximum data transfer rate
1000 Mbit/s
Compatible operating systems
Microsoft Windows XP- Vista- Windows 7- Windows 8- Windows10
Network
Networking standards
IEEE 802.11ac-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n
Management features
VLAN support
Yes
Rate limiting
Yes
Quality of Service (QoS) support
Yes
Syslog
Yes
Web-based management
Yes
Certificates
Certification
CE- RoHS
Features
2.4 GHz
Yes
5 GHz
Yes
Automatic channel selection
Yes
VLAN support
Yes
Rate limiting
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11ac-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n
Ethernet LAN data rates
10-100-1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Maximum data transfer rate
1000 Mbit/s
Transmitting power (CE)
20 - 23 dBm
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Compatible operating systems
Microsoft Windows XP- Vista- Windows 7- Windows 8- Windows10
Security
Number of SSID supported
16
Security algorithms
64-bit WEP-128-bit WEP-152-bit WEP-SNMP-SNMPv2-WPA-WPA-PSK-WPA2-Enterprise-WPA2-PSK
MAC address filtering
Yes
Access Control List (ACL)
Yes
Protocols
Secure File Transfer Protocol (SFTP) using SSH v2
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Cabling technology
10/100/1000Base-T(X)
Power
Power consumption (typical)
7 W
Power over Ethernet (PoE)
Yes
Design
Placement
In-wall
Product colour
White
LED indicators
Operation
Certification
CE- RoHS
Antenna
Antenna type
Internal
Antennas quantity
2
Antenna gain level (max)
3.6 dBi
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Indication
LED indicators
Operation
Software
Access Control List (ACL)
Yes
Secure File Transfer Protocol (SFTP) using SSH v2
Yes
Weight & dimensions
Width
86.8 mm
Depth
30.2 mm
Height
86.8 mm
Packaging data
Number of products included
2 pc(s)
System requirements
Compatible operating systems
Microsoft Windows XP- Vista- Windows 7- Windows 8- Windows10
Packaging content
Number of products included
2 pc(s)
Omada EAP230 - V1 - Wireless Router - GigE, 802.11ac Wave 2
