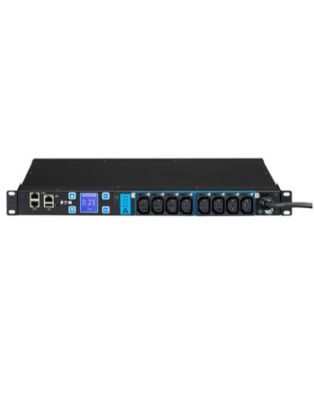

Eaton ESWH28 power distribution unit (PDU) 8 AC outlet(s) 1U Black
In Stock
|
Design
Type
Single-phase
PDU types
Switched
Mounting
Horizontal
Display
LCD
Product colour
Black
Certification
CB- CE- EN 60950-1:2006/A11:2009/A1:2010/A12:2011EN 61000-6-2:2005EN 50581 : 2012- REACH- WEEEISO 9001:2008 / ISO 14001:2004
Form factor
Rackmount
Rack mounting
Yes
Cable colour
Black
Rack capacity
1U
Ports & interfaces
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C20 coupler
Serial ports quantity
1
Output connections
8 x C13
Ethernet LAN (RJ-45) ports
1
Features
Cable length
3 m
LED indicators
Yes
Certification
CB- CE- EN 60950-1:2006/A11:2009/A1:2010/A12:2011EN 61000-6-2:2005EN 50581 : 2012- REACH- WEEEISO 9001:2008 / ISO 14001:2004
Management features
Supported network protocols
HTTP- HTTPS- SSL- FTP- SMTP- DNS- DHCP- LDAP- RADIUS
Management protocols
SNMP- Telnet
Firmware upgradeable via
Network- USB
Firmware upgradeable
Yes
Monitoring
Voltage
Ergonomics
Cable length
3 m
LED indicators
Yes
Display
LCD
Power
Maximum power
3700 W
Nominal input voltage
230 V
Nominal output voltage
230 V
Maximum current
16 A
Maximum input current per phase
16 A
AC input frequency
50 Hz
Weight & dimensions
Dimensions (WxDxH)
445 x 203 x 43 mm
Weight
3.4 kg
Width
445 mm
Depth
203 mm
Height
43 mm
Package width
375 mm
Package depth
570 mm
Package height
195 mm
Package weight
5.8 kg
Packaging data
Package width
375 mm
Package depth
570 mm
Package height
195 mm
Package weight
5.8 kg
Packaging content
Cables included
LAN (RJ-45)
Rack mount kit
Yes
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Technical details
Sustainability certificates
RoHS
Eaton ESWH28 power distribution unit (PDU) 8 AC outlet(s) 1U Black
| Length | 20.30 in |
| Width | 44.50 in |
| Height | 4.30 in |
| Weight | 3.400000 lbs |
