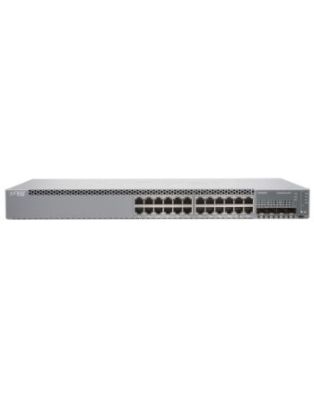

Juniper EX2300-24P - 24-Port Gigabit Ethernet PoE Switch
In Stock
|
Management features
Multicast support
Yes
ARP inspection
Yes
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2/L3
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Network
IGMP snooping
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4093
Link aggregation
Yes
IP routing
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Number of VLANs
4093
Data transmission
Number of VLANs
4093
Jumbo frames
9216
Throughput
95 Mpps
MAC address table
16000 entries
Switching capacity
128 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Technical details
Form factor
1U
Product colour
Grey
Processor frequency
1250 MHz
Noise level
39.3 dB
Rack mounting
Yes
Built-in processor
Yes
Security
Access Control List (ACL) rules
1500
IGMP snooping
Yes
Access Control List (ACL)
Yes
Multicast features
Multicast support
Yes
Memory
Memory type
DRAM
Internal memory
2000 MB
Flash memory
2000 MB
Design
Form factor
1U
Product colour
Grey
Certification
ROHS
Rack mounting
Yes
Performance
Processor frequency
1250 MHz
Noise level
39.3 dB
Memory type
DRAM
Internal memory
2000 MB
Flash memory
2000 MB
Built-in processor
Yes
Power
Power consumption (max)
80 W
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
24
Total Power over Ethernet (PoE) budget
370 W
Power over Ethernet (PoE)
Yes
Weight & dimensions
Width
441.9 mm
Depth
31 mm
Height
44.5 mm
Weight
4.49 kg
Juniper EX2300-24P - 24-Port Gigabit Ethernet PoE Switch
| Length | 3.10 in |
| Width | 44.19 in |
| Height | 4.45 in |
| Weight | 4.490000 lbs |
