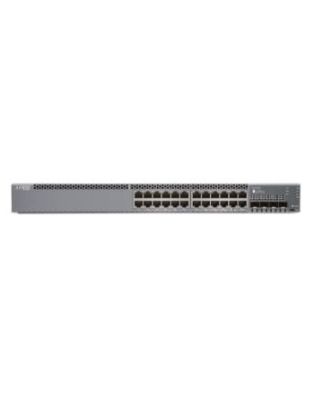

Juniper EX3400-24T Managed L2/L3 Gigabit Ethernet (10/100/1000) Grey 1U
In Stock
|
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
Yes
Switch layer
L2/L3
Ports & interfaces
SFP+ module slots quantity
4
QSFP+ module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
24
Network
IGMP snooping
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
4093
Link aggregation
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Number of VLANs
4093
Data transmission
Number of multicast groups filtered
9000
Number of VLANs
4093
Jumbo frames
9216
Throughput
214 Mpps
MAC address table
3200 entries
Switching capacity
288 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Technical details
Form factor
1U
Product colour
Grey
Processor frequency
1000 MHz
Noise level
36 dB
Rack mounting
Yes
Security
SSH/SSL support
Yes
Security algorithms
SNMP-SSH-2
IGMP snooping
Yes
Access Control List (ACL)
Yes
Multicast features
Number of multicast groups filtered
9000
Multicast support
Yes
Memory
Memory type
DRAM
Internal memory
2048 MB
Flash memory
2048 MB
Design
Form factor
1U
Product colour
Grey
Rack mounting
Yes
Performance
Processor frequency
1000 MHz
Noise level
36 dB
Memory type
DRAM
Internal memory
2048 MB
Flash memory
2048 MB
Power
Power consumption (max)
100 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 85%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 4877 m
Weight & dimensions
Width
442 mm
Depth
350 mm
Height
44 mm
Weight
5.74 kg
Juniper EX3400-24T Managed L2/L3 Gigabit Ethernet (10/100/1000) Grey 1U
| Length | 35.00 in |
| Width | 44.20 in |
| Height | 4.40 in |
| Weight | 5.740000 lbs |
