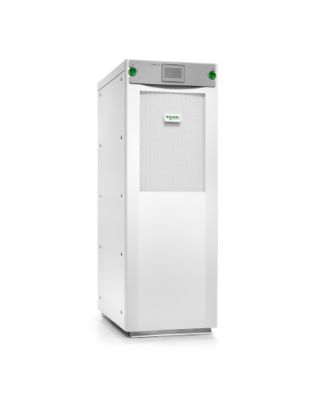

APC GVSUPS10KB4HS uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W
In Stock
|
Power
Input power factor
0.99
Output power
10000 W
Input operation voltage (min)
340 V
Input operation voltage (max)
460 V
Output operation voltage (min)
380 V
Output operation voltage (max)
415 V
Maximum current
18 A
Output voltage Total Harmonic Distortion (THD)
3%
Input current Total Harmonic Distortion (THD)
3%
Crest factor
2.5:1
Output power capacity
10 kVA
ECO mode
Yes
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of output phases
3
Number of input phases
3
Power protection features
Overload- Short circuit
Noise level
55 dB
Audible alarm(s)
Yes
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of output phases
3
Number of input phases
3
Input power factor
0.99
Output power
10000 W
Input operation voltage (min)
340 V
Input operation voltage (max)
460 V
Output operation voltage (min)
380 V
Output operation voltage (max)
415 V
Maximum current
18 A
Power protection features
Overload- Short circuit
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
55 dB
Input current Total Harmonic Distortion (THD)
3%
Crest factor
2.5:1
Audible alarm(s)
Yes
Output power capacity
10 kVA
ECO mode
Yes
Input frequency
40/70 Hz
Ports & interfaces
SmartSlot
Yes
AC outlet types
Hard Wire 4-wire (3PH + G)- Hard Wire 5-wire (3PH + N + G)
Battery
Battery voltage
480 V
Battery technology
Sealed Lead Acid (VRLA)
Design
Form factor
Tower
Product colour
White
Display
LCD
Certification
CSA C22.2 NO. 107.3- EN/IEC 62040-1- EN/IEC 62040-2- EN/IEC 62040-3- IEC 60721-4-2 Level 2M2- UL 1778 5th edition
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 1000 m
Non-operating altitude
0 - 3000 m
Technical details
Output frequency
50/60 Hz
Weight & dimensions
Weight
330 kg
Width
521 mm
Height
1485 mm
Depth
847 mm
Package width
640 mm
Package depth
990 mm
Package height
1680 mm
Package weight
360 kg
Packaging data
Quick installation guide
Yes
Package width
640 mm
Package depth
990 mm
Package height
1680 mm
Package weight
360 kg
Certificates
Certification
CSA C22.2 NO. 107.3- EN/IEC 62040-1- EN/IEC 62040-2- EN/IEC 62040-3- IEC 60721-4-2 Level 2M2- UL 1778 5th edition
Packaging content
Quick installation guide
Yes
APC GVSUPS10KB4HS uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W
| Length | 84.70 in |
| Width | 52.10 in |
| Height | 148.50 in |
| Weight | 330.000000 lbs |
