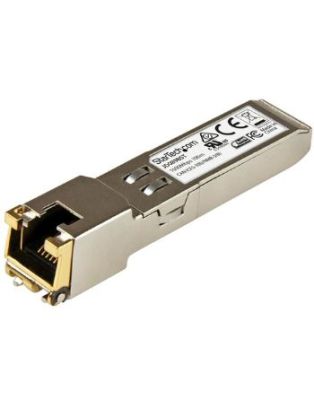

StarTech HP JD089B Compatible SFP Transceiver Module - 10/100/1000BASE-TX
In Stock
|
Network
SFP transceiver type
Copper
Networking standards
IEEE 802.3-IEEE 802.3ab-IEEE 802.3u
Ethernet LAN (RJ-45) ports
1
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
Technical details
Package width
119 mm
Package height
35 mm
Hot-swap
Yes
Auto MDI/MDI-X
Yes
Maximum transfer distance
100 m
Duplex system
Full
Sustainability certificates
RoHS
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Performance
Product colour
Silver
Housing material
Aluminium
Hot-swap
Yes
Mean time between failures (MTBF)
4655371 h
SFP transceiver type
Copper
Digital Diagnostics Monitoring (DDM)
No
Auto-negotiation
Yes
Networking standards
IEEE 802.3-IEEE 802.3ab-IEEE 802.3u
Auto MDI/MDI-X
Yes
Ethernet LAN (RJ-45) ports
1
Maximum transfer distance
100 m
Duplex system
Full
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
Features
Product colour
Silver
Housing material
Aluminium
Hot-swap
Yes
Certification
CE- FCC- UR
Mean time between failures (MTBF)
4655371 h
Power
Power consumption (typical)
1.3 W
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
13.7 mm
Depth
68 mm
Height
13.8 mm
Weight
25 g
Package depth
93 mm
Package width
119 mm
Package height
35 mm
Package weight
54 g
Packaging data
Package depth
93 mm
Number of products included
1 pc(s)
Package width
119 mm
Package height
35 mm
Package weight
54 g
Certificates
Certification
CE- FCC- UR
Packaging content
Number of products included
1 pc(s)
Logistics data
Master (outer) case width
35 cm
Master (outer) case length
41 cm
Master (outer) case height
35.5 cm
Quantity per master (outer) case
100 pc(s)
StarTech HP JD089B Compatible SFP Transceiver Module - 10/100/1000BASE-TX
| Weight | 0.050000 lbs |
