Data transmission
Ethernet LAN data rates
101001000 Mbit/s
Maximum data transfer rate
1000 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Auto MDI/MDI-X
Yes
Transmitting power
21 dBmW
Reset button
Yes
Spread spectrum method
DSSSOFDM
Networking standards
IEEE 802.11ac
Ethernet LAN data rates
101001000 Mbit/s
Certification
CB Scheme Safety cTUVus
Maximum data transfer rate
1000 Mbit/s
Networking
Internal
No
Spread spectrum method
DSSSOFDM
Networking standards
IEEE 802.11ac
Certificates
Certification
CB Scheme Safety cTUVus
Features
2.4 GHz
Yes
5 GHz
Yes
Auto MDI/MDI-X
Yes
Transmitting power
21 dBmW
Spread spectrum method
DSSSOFDM
Networking standards
IEEE 802.11ac
Ethernet LAN data rates
101001000 Mbit/s
Maximum data transfer rate
1000 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Ports & interfaces
WAN connection
Ethernet (RJ-45)
USB connector type
USB Type-A
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
Power
Power consumption (max)
7.5 W
Input voltage
90 - 265 V
Input frequency
47-63 Hz
Design
Placement
TableWall
Product colour
White
Reset button
Yes
Internal
No
LED indicators
PowerStatus
Certification
CB Scheme Safety cTUVus
Antenna
Antennas quantity
2
Antenna features
Integrated antenna
Technical details
Transmitting power
21 dBmW
Reset button
Yes
Operational conditions
Operating relative humidity (H-H)
5 - 93%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Indication
LED indicators
PowerStatus
Weight & dimensions
Width
6.1" (155 mm)
Depth
1.97" (50 mm)
Weight
11.3 oz (320 g)
Height
3.74" (95 mm)

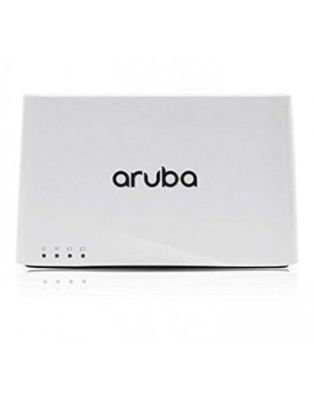

Aruba AP-203R (RW) Unified Remote AP
Weight | 0.570000 lbs |
