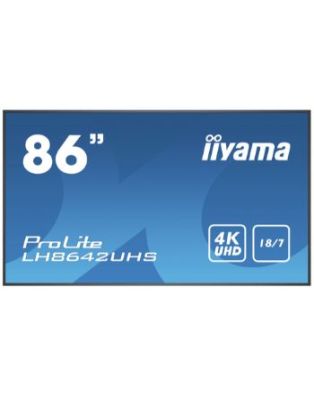

iiyama LH8642UHS-B3 signage display Digital signage flat panel 2.17 m (85.6") IPS 4K Ultra HD Black Built-in processor Android 8.0
In Stock
|
Display
Display number of colours
1.07 billion colours
Touchscreen
No
Active display area (W x H)
1895 x 1066.9 mm
Display technology
IPS
Display diagonal
2.17 m (85.6")
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Response time
8 ms
Contrast ratio (typical)
1200:1
Viewing angle- horizontal
178°
Viewing angle- vertical
178°
Pixel pitch
0.494 x 0.494 mm
Display diagonal (metric)
217 cm
Horizontal scan range
30 - 80 kHz
Native refresh rate
60 Hz
Ports & interfaces
Remote (IR) input
1
DisplayPorts out
1
USB port
Yes
DisplayPorts in
1
RS-232C
Yes
Wi-Fi
No
PC Audio in
Yes
DisplayPorts quantity
2
Ethernet LAN
Yes
HDMI ports quantity
3
DVI port
Yes
VGA (D-Sub) input ports
1
Audio (L/R) out
1
Ethernet LAN (RJ-45) ports
1
USB version
2.0
USB ports quantity
2
HDMI in
3
Audio
Number of built-in speakers
2
RMS rated power
20 W
Built-in speaker(s)
Yes
Design
Product design
Digital signage flat panel
Placement supported
Indoor
Orientation
Horizontal/Vertical
Bezel width (top)
1.55 cm
Bezel width (side)
1.55 cm
Bezel width (bottom)
1.55 cm
Product colour
Black
Panel mounting interface
600 x 400 mm
VESA mounting
Yes
Performance
Purpose
Universal
Operating hours (hours/days)
18/7
Mean time between failures (MTBF)
50000 h
On Screen Display (OSD) languages
German- Dutch- English- Spanish- French- Italian- Japanese- Polish- Russian
On Screen Display (OSD)
Yes
Number of OSD languages
10
HDCP
Yes
Wi-Fi
No
Power
Power consumption (off)
0.5 W
Power consumption (typical)
444 W
Power consumption (standby)
0.5 W
AC input voltage
100-240 V
AC input frequency
50/60 Hz
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
403 kWh
Computer system
Computer system
Yes
Operating system installed
Android 8.0
Internal memory
3 GB
Internal storage capacity
32 GB
Built-in processor
Yes
Weight & dimensions
Display width
1929 mm
Display depth
99.5 mm
Display height
1199 mm
Display weight
49.5 kg
Packaging data
Package width
2224 mm
Package depth
373 mm
Package height
1427 mm
Package weight
66.1 kg
Batteries included
Yes
Remote control included
Yes
Cables included
AC- HDMI- RS-232
Packaging content
Batteries included
Yes
Remote control included
Yes
Cables included
AC- HDMI- RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
-20 - 60%
Technical details
VESA mounting
Yes
DisplayPorts out
1
DisplayPorts in
1
Sustainability certificates
CE- REACH- RoHS- WEEE
Thin Client
Operating system installed
Android 8.0
Internal memory
3 GB
Internal storage capacity
32 GB
Other features
DisplayPorts out
1
DisplayPorts in
1
Wi-Fi
No
Mean time between failures (MTBF)
50000 h
Display technology
IPS
Bezel width (top)
1.55 cm
Bezel width (side)
1.55 cm
Bezel width (bottom)
1.55 cm
iiyama LH8642UHS-B3 signage display Digital signage flat panel 2.17 m (85.6") IPS 4K Ultra HD Black Built-in processor Android 8.0
| Weight | 74.000000 lbs |
