Technical details
Motherboard chipset
Intel C226
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
ATX
Component for
Workstation
Sustainability certificates
RoHS
Audio
Audio output channels
7.1 channels
Performance
Watch Dog function
Yes
Motherboard chipset
Intel C226
RAID levels
01510
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
Workstation
Processor
Processor manufacturer
Intel
Intel Xeon series
E3-1200
Processor socket
LGA 1150 (Socket H3)
Memory
Supported memory types
DDR3-SDRAM
Memory voltage
1.351.5 V
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
1600 MHz
Maximum internal memory
32 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Internal I/O
Supported storage drive interfaces
SATA III
TPM connector
Yes
Number of SATA III connectors
8
Number of IEEE1394 connectors
2
Number of COM connectors
2
Number of chassis fan connectors
5
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Watch Dog function
Yes
Motherboard chipset
Intel C226
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
Workstation
Audio chip
RealTek ALC1150
Expansion slots
PCI Express x1 (Gen 2.x) slots
3
PCI Express x16 (Gen 3.x) slots
2
PCI slots
2
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
5
Desktop Management Interface (DMI) version
2.7
Processor special features
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Weight & dimensions
Width
12" (304.8 mm)
Depth
9.61" (244 mm)

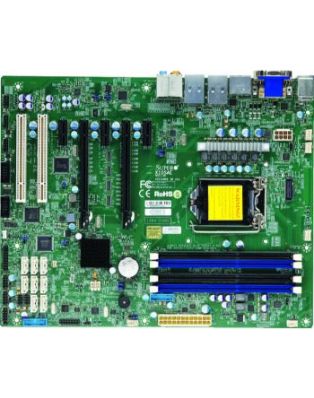

Supermicro Motherboard X10SAE
| Weight | 1.000000 lbs |
