Technical details
Motherboard chipset
Intel C621
Trusted Platform Module (TPM)
Yes
Number of processors supported
1
Number of DIMM slots
16
Motherboard form factor
Extended ATX
Thermal Design Power (TDP)
205 W
Form factor
E-ATX
Sustainability certificates
RoHS
Performance
Motherboard chipset
Intel C621
RAID levels
01510
Trusted Platform Module (TPM)
Yes
Motherboard form factor
Extended ATX
Processor
Processor manufacturer
Intel
Thermal Design Power (TDP)
205 W
Compatible processor series
Intel Xeon
Processor socket
LGA 3647 (Socket P)
Supported QPI
10.4 GT/s
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
213324002666 MHz
Supported RDIMM clock speeds
213324002666 MHz
Supported RDIMM module capacity
64GB
Maximum internal memory
2000 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Internal I/O
Supported storage drive interfaces
SATA III
TPM connector
Yes
Number of SATA III connectors
8
Number of COM connectors
1
Number of chassis fan connectors
7
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
VGA (D-Sub) ports quantity
1
COM ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
Intel C621
Motherboard form factor
Extended ATX
Expansion slots
PCI Express x8 (Gen 3.x) slots
3
PCI Express x16 (Gen 3.x) slots
3
BIOS
BIOS type
UEFI AMI
Plug and Play
Yes
Processor special features
Trusted Platform Module (TPM)
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
12" (304.8 mm)
Depth
13" (330.2 mm)

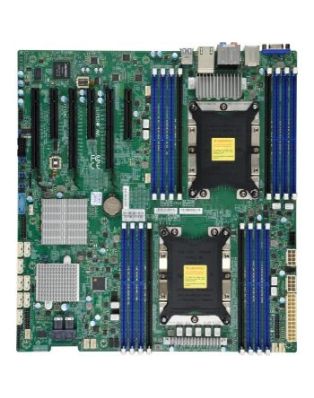

Supermicro Motherboard X11DAC
Weight | 1.000000 lbs |
