Technical details
Motherboard chipset
Intel C236
Trusted Platform Module (TPM)
Yes
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
ATX
Component for
Workstation
Thermal Design Power (TDP)
95 W
Sustainability certificates
RoHS
Performance
Watch Dog function
Yes
Motherboard chipset
Intel C236
RAID levels
01510
Trusted Platform Module (TPM)
Yes
Motherboard form factor
ATX
Component for
Workstation
Intelligent Platform Management Interface (IPMI) support
Yes
Processor
Processor manufacturer
Intel
Thermal Design Power (TDP)
95 W
Processor thermal power (max)
80 W
Intel Xeon series
E3-1200
Processor socket
LGA 1151 (Socket H4)
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
1600186621332400 MHz
Supported UDIMM clock speeds
1600186621332400 MHz
Maximum internal memory
64 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Number of SATA III connectors
8
Number of COM connectors
2
Number of chassis fan connectors
4
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
DVI-D ports quantity
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I210-AT Intel I219LM
Ethernet interface type
Gigabit Ethernet
Features
Watch Dog function
Yes
Motherboard chipset
Intel C236
Motherboard form factor
ATX
Component for
Workstation
Audio chip
Realtek ALC888S
Expansion slots
PCI Express x16 dual x8/x8 mode
Yes
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
2
PCI slots
2
BIOS
BIOS type
UEFI AMI
ACPI version
5
UEFI version
2.3.1
System Management BIOS (SMBIOS) version
3
Real-time clock (RTC)
Yes
Plug and Play
Yes
Desktop Management Interface (DMI) version
2.3
Processor special features
Trusted Platform Module (TPM)
Yes
Intelligent Platform Management Interface (IPMI) support
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Software
Bundled software
IPMI2.0 SPM SuperDoctor 5
Weight & dimensions
Width
12" (304.8 mm)
Depth
9.6" (243.8 mm)

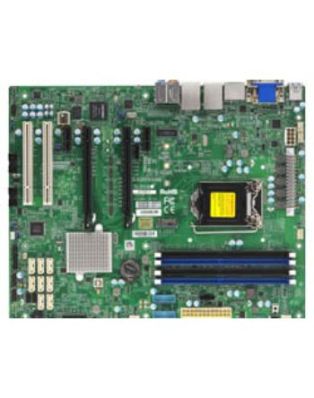

Supermicro Motherboard X11SAE-F
Weight | 1.000000 lbs |
