Technical details
Motherboard chipset
Intel C236
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
ATX
Sustainability certificates
RoHS
Performance
Motherboard chipset
Intel C236
RAID levels
01510
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Motherboard form factor
ATX
Processor
Processor manufacturer
Intel
Processor thermal power (max)
95 W
Intel Xeon series
E3-1200
Processor socket
LGA 1151 (Socket H4)
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
160018662133 MHz
Maximum internal memory
64 GB
Maximum UDIMM memory
64 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
TPM connector
Yes
Number of SATA III connectors
6
Number of COM connectors
1
Chassis intrusion connector
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
DVI-D ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Features
Motherboard chipset
Intel C236
Motherboard form factor
ATX
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
3
BIOS
BIOS type
AMI
BIOS memory size
16 Mbit
ACPI version
4
Processor special features
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Weight & dimensions
Width
12" (305 mm)
Depth
8.82" (224 mm)

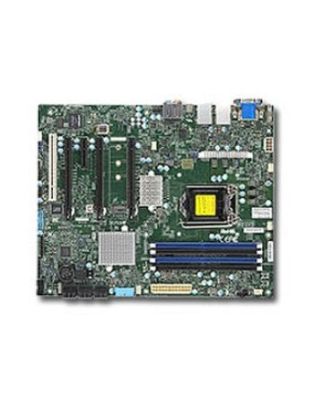

Supermicro Motherboard X11SAT-F
| Weight | 1.000000 lbs |
