Internal I/O
Number of M.2 (M) slots
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
2
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Number of SATA III connectors
8
Technical details
Motherboard chipset
Intel C246
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
ATX
Component for
Workstation
Thermal Design Power (TDP)
95 W
Performance
Motherboard chipset
Intel C246
RAID levels
01510
Motherboard form factor
ATX
Component for
Workstation
Processor
Processor manufacturer
Intel
Thermal Design Power (TDP)
95 W
Processor socket
LGA 1151 (Socket H4)
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
16001866213324002666 MHz
Maximum internal memory
64 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
DVI-D ports quantity
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
LAN controller
Intel I210-AT Intel PHY I219LM
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
Intel C246
Motherboard form factor
ATX
Component for
Workstation
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
1
PCI Express x4 (Gen 3.x) slots
1
PCI slots
1
BIOS
BIOS type
UEFI
BIOS memory size
128 Mbit
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Width
12" (304.8 mm)
Depth
9.6" (243.8 mm)

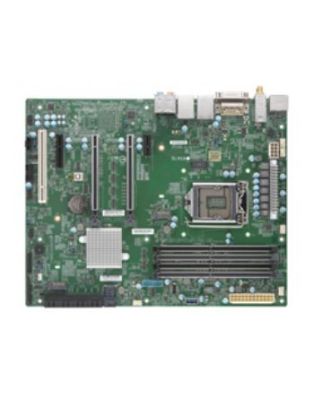

Supermicro Motherboard X11SCA-W
| Weight | 1.000000 lbs |
