Internal I/O
Number of M.2 (M) slots
1
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Number of SATA III connectors
4
Number of COM connectors
1
Technical details
Motherboard chipset
Intel C242
Number of processors supported
1
Number of DIMM slots
2
Motherboard form factor
Mini-ITX
Component for
Server
Thermal Design Power (TDP)
95 W
Performance
Motherboard chipset
Intel C242
RAID levels
01510
Motherboard form factor
Mini-ITX
Component for
Server
Processor
Processor manufacturer
Intel
Thermal Design Power (TDP)
95 W
Processor socket
LGA 1151 (Socket H4)
Processor number of cores supported
6
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
2133240026662667 MHz
Supported RDIMM module capacity
4GB 8GB 16GB 32GB
Maximum internal memory
64 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I210
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
Intel C242
Motherboard form factor
Mini-ITX
Component for
Server
Expansion slots
Number of M.2 (M) slots
1
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
UEFI
BIOS memory size
256 Mbit
ACPI version
6
UEFI version
2.7
System Management BIOS (SMBIOS) version
2.7
Real-time clock (RTC)
Yes
Plug and Play
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
6.7" (170.2 mm)
Depth
6.7" (170.2 mm)

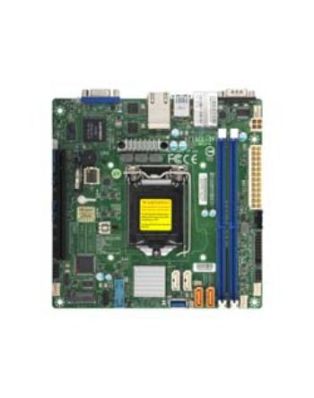

Supermicro Motherboard X11SCL-IF
| Weight | 1.000000 lbs |
