Technical details
Motherboard chipset
Intel C621
Number of processors supported
1
Number of DIMM slots
8
Motherboard form factor
ATX
Component for
Server
Performance
Motherboard chipset
Intel C621
RAID levels
01510
Motherboard form factor
ATX
Component for
Server
Processor
Processor manufacturer
Intel
Processor thermal power (max)
165 W
Processor number of cores supported
28
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
Supported memory clock speeds
16001866213324002666 MHz
Maximum internal memory
2048 GB
Maximum RDIMM memory
256 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
6
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
Number of COM connectors
1
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
COM ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
Intel C621
Motherboard form factor
ATX
Component for
Server
Expansion slots
PCI Express x4 (Gen 3.x) slots
1
PCI Express x8 (Gen 3.x) slots
6
BIOS
BIOS type
UEFI AMI
ACPI version
6
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
12" (304.8 mm)
Depth
9.6" (243.8 mm)

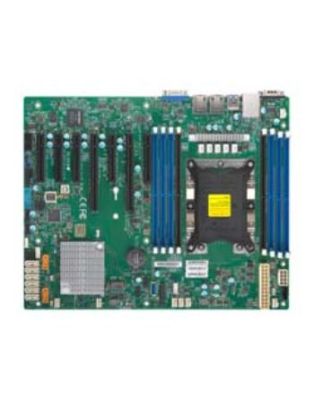

SUPERMICRO X11SPL-F Socket P ATX MBD-X11SPL-F-B
Weight | 1.000000 lbs |
