Network
Fiber optic connector
SC
Cable types supported
Cat3-Cat4-Cat5
Copper ethernet cabling technology
10BASE-TX-100BASE-FX-100BASE-TX
Networking standards
IEEE 802.3-IEEE 802.3u
Ethernet LAN data rates
10-100 Mbit/s
Duplex system
Full- Half
Auto MDI/MDI-X
Yes
Maximum data transfer rate
100 Mbit/s
Technical details
Maximum transfer distance
20000 m
Fiber mode structure
Single-mode
Internal
No
Sustainability certificates
RoHS
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SC
Indication
LED indicators
Yes
Performance
Wavelength-division multiplexing (WDM)
Yes
Maximum transfer distance
20000 m
Fiber mode structure
Single-mode
Design
LED indicators
Yes
Product colour
Black
Internal
No
Power
Power consumption (max)
2.41 W
Colour
Product colour
Black
Weight & dimensions
Width
95 mm
Depth
73 mm
Height
27 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%

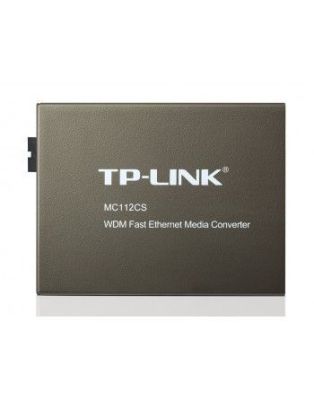

TP-LINK 10/100Mbps WDM Media Converter
| Weight | 0.380000 lbs |
