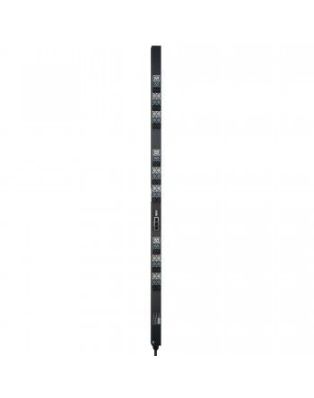

Tripp Lite 11.5kW 3-Phase Metered PDU, 240-220V (36 C13 & 9 C19), IEC-309 16/20A Red, 415-380V Input, 1.83 m Cord, 0U Vertical
In Stock
|
Design
PDU types
Metered
Mounting
Vertical
Product colour
Black
Certification
UL CSA NOM CE
RoHS compliance
Yes
Rack capacity
0U
Housing material
Steel
Ports & interfaces
AC outlets quantity
45 AC outlet(s)
AC outlet types
C13 couplerC19 coupler
Input connection type
IEC-309 16A RED (3P+N+E)
Features
Cable length
70.9" (1.8 m)
Certification
UL CSA NOM CE
RoHS compliance
Yes
Ergonomics
Cable length
70.9" (1.8 m)
Power
Nominal input voltage
380-415 V
Nominal output voltage
220-240 V
Maximum current
16 A
Load capacity
11500 VA
AC input frequency
50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)
2.2 x 1.93 x 70" (56 x 49 x 1778 mm)
Weight
9.04 lbs (4.1 kg)
Package width
5.5" (139.7 mm)
Package depth
76" (1930.4 mm)
Package height
6.5" (165.1 mm)
Package weight
15.1 lbs (6.85 kg)
Package dimensions (WxDxH)
4.29 x 75.8 x 6.1" (109 x 1925 x 155 mm)
Packaging data
Package width
5.5" (139.7 mm)
Package depth
76" (1930.4 mm)
Package height
6.5" (165.1 mm)
Package weight
15.1 lbs (6.85 kg)
Package dimensions (WxDxH)
4.29 x 75.8 x 6.1" (109 x 1925 x 155 mm)
Operational conditions
Operating relative humidity (H-H)
0 - 95%
Tripp Lite 11.5kW 3-Phase Metered PDU, 240-220V (36 C13 & 9 C19), IEC-309 16/20A Red, 415-380V Input, 1.83 m Cord, 0U Vertical
| Length | 4.33 in |
| Width | 6.1 in |
| Height | 75.79 in |
| Weight | 4.100000 lbs |
