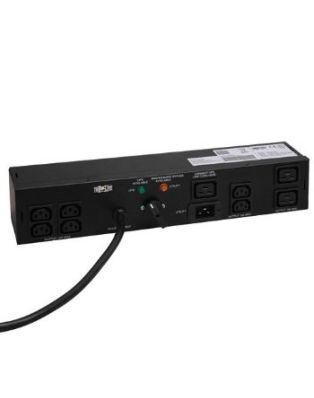

Tripp Lite 3.2-3.8kW Single-Phase Hot-Swap PDU, 200-240V 16A (6-C13, 2-C19) 2-C20, 200-240V Input, 6

Tripp Lite 3.2-3.8kW Single-Phase Hot-Swap PDU, 200-240V 16A (6-C13, 2-C19) 2-C20, 200-240V Input, 6

Name: Tripp Lite 3.2-3.8kW Single-Phase Hot-Swap PDU, 200-240V 16A (6-C13, 2-C19) 2-C20, 200-240V Input, 6
Brand: Tripp Lite
SKU: PDUBHV20
Availability: InStock

| Write a review

In Stock

Brand:	Tripp Lite
SKU:	PDUBHV20
Condition:	NEW

Please Call us for Price confirmation

+966 11 434 8700 (Get QTY Discount)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Design
PDU types	Basic
Mounting	Horizontal
Product colour	Black
Certification	UL60950 (USA) CSA (Canada) CE (IEC60950)
RoHS compliance	Yes
Rack capacity	2U
Housing material	Steel
Ports & interfaces
AC outlets quantity	9 AC outlet(s)
AC outlet types	C13 couplerC19 coupler
Power plug	C20 coupler
Features
Cable length	72" (1.83 m)
LED indicators	Yes
Certification	UL60950 (USA) CSA (Canada) CE (IEC60950)
RoHS compliance	Yes
Ergonomics
Cable length	72" (1.83 m)
LED indicators	Yes
Power
Nominal input voltage	200-240 V
Nominal output voltage	200-240 V
Maximum current	16 A
AC input frequency	50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)	17.3 x 3.03 x 3.43" (440 x 77 x 87 mm)
Weight	7.72 lbs (3.5 kg)
Package width	6.2" (157.5 mm)
Package depth	20.2" (513.1 mm)
Package height	12.2" (309.9 mm)
Package weight	10 lbs (4.54 kg)
Packaging data
Package width	6.2" (157.5 mm)
Package depth	20.2" (513.1 mm)
Package height	12.2" (309.9 mm)
Package weight	10 lbs (4.54 kg)
Operational conditions
Storage temperature (T-T)	-15 - 50 °C
Operating altitude	0 - 118110.2" (0 - 3000 m)
Logistics data
Master (outer) case width	20.8" (52.8 cm)
Master (outer) case length	19.3" (49 cm)
Master (outer) case height	27.8" (70.6 cm)
Master (outer) case weight	61.1 lbs (27.7 kg)
Quantity per master (outer) case	6 pc(s)
