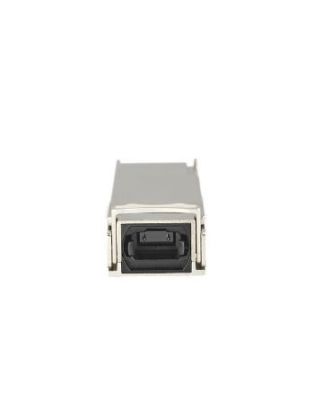

StarTech MSA Uncoded QSFP+ Module - 40GBASE-SR4 - 40GbE Multi Mode Fiber (MMF) Optic Transceiver
In Stock
|
Network
SFP transceiver type
Fiber optic
Fiber optic connector
MPO
Networking standards
IEEE 802.3ba
Maximum data transfer rate
40000 Mbit/s
Interface type
QSFP+
Technical details
Package width
90 mm
Package height
30 mm
Hot-Plug support
Yes
Maximum transfer distance
150 m
Wavelength
850 nm
Duplex system
Full
Sustainability certificates
RoHS
Performance
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
Mean time between failures (MTBF)
1489426 h
SFP transceiver type
Fiber optic
Digital Diagnostics Monitoring (DDM)
Yes
Fiber optic connector
MPO
Networking standards
IEEE 802.3ba
Maximum transfer distance
150 m
Wavelength
850 nm
Duplex system
Full
Maximum data transfer rate
40000 Mbit/s
Interface type
QSFP+
Multi-mode fiber (MMF) supported
Yes
SFP transceiver standard
SR4
Features
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
Certification
CE- FCC- UR
Mean time between failures (MTBF)
1489426 h
Power
Power consumption (typical)
0.7 W
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
18.4 mm
Depth
72 mm
Height
13 mm
Weight
34 g
Package depth
120 mm
Package width
90 mm
Package height
30 mm
Package weight
62 g
Packaging data
Package depth
120 mm
Number of products included
1 pc(s)
Package width
90 mm
Package height
30 mm
Package weight
62 g
Certificates
Certification
CE- FCC- UR
Packaging content
Number of products included
1 pc(s)
Logistics data
Master (outer) case width
27 cm
Master (outer) case length
34 cm
Master (outer) case height
33 cm
Quantity per master (outer) case
60 pc(s)
StarTech MSA Uncoded QSFP+ Module - 40GBASE-SR4 - 40GbE Multi Mode Fiber (MMF) Optic Transceiver
| Weight | 1.000000 lbs |
