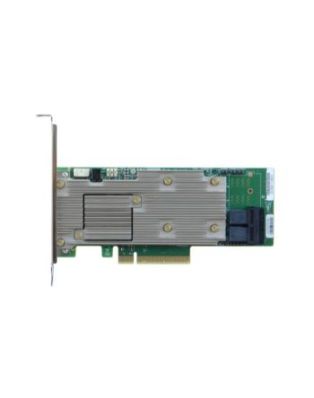

Intel RSP3DD080F RAID controller PCI Express x8 3.0
In Stock
|
Ports & interfaces
Supported storage drive interfaces
PCI Express- SAS- Serial ATA
Host interface
PCI Express x8
PCI Express slots version
3.0
PCI Card form factor
Half-height (low-profile)
Internal mini-SAS ports
2
Memory
Internal memory
4096 MB
Internal memory type
DDR4
Memory clock speed
2133 MHz
Performance
RAID ARK ID
99497
RAID levels
0-1-10-5-50-6-60
Internal memory
4096 MB
Internal memory type
DDR4
Chipset
SAS3508
Memory clock speed
2133 MHz
S.M.A.R.T. support
Yes
Online Capacity Expansion
Yes
Number of devices supported
240
Form factor
Low-Profile MD2 PCIe AIC
Compatible battery backup options
AXXRMFBU7
Built-in processor
Yes
Harmonized System (HS) code
8471801000
Export Control Classification Number (ECCN)
4A994B
Commodity Classification Automated Tracking System (CCATS)
NA
JBOD function
Yes
Technical details
RAID levels
0-1-10-5-50-6-60
Chipset
SAS3508
S.M.A.R.T. support
Yes
Online Capacity Expansion
Yes
Number of devices supported
240
Form factor
Low-Profile MD2 PCIe AIC
Compatible operating systems
Windows- Linux- VMWare-
Compatible battery backup options
AXXRMFBU7
Supported devices
PCIe/SAS/SATA
Other features
Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys.
Internal ports
8
Product type
RAID
Processor model
LSISAS3508
Status
Launched
RAID keying
PCIe x8
RAID connector orientation
Vertical
PCI Express host interface
PCIe x8 Gen3
Market segment
Server
Launch date
Q3'17
Last change
63903513
Target market
Full-featured
Last order date
2019-08-03 05:00:37
Extended warranty available for purchase (select countries)
Yes
Expected discontinuance date
Q2'23
Packaging content
(1) Intel RAID Adapter- (1) low-profile mounting bracket
Product codename
Dakota Dunes
Processor
Processor model
LSISAS3508
Built-in processor
Yes
Design
Form factor
Low-Profile MD2 PCIe AIC
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Compatible operating systems
Windows- Linux- VMWare-
Weight & dimensions
Packaging content
(1) Intel RAID Adapter- (1) low-profile mounting bracket
Packaging content
Packaging content
(1) Intel RAID Adapter- (1) low-profile mounting bracket
Logistics data
Harmonized System (HS) code
8471801000
Other features
RAID ARK ID
99497
PCI Card form factor
Half-height (low-profile)
Compatible operating systems
Windows- Linux- VMWare-
Supported devices
PCIe/SAS/SATA
Other features
Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys.
Internal ports
8
Market segment
Server
Additional features
Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys.
Product series
Intel® RAID Controllers
Intel RSP3DD080F RAID controller PCI Express x8 3.0
| Weight | 0.380000 lbs |
