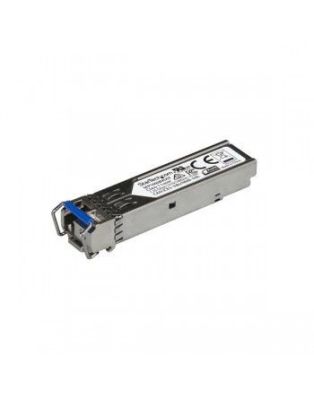

StarTech MSA Compliant Transceiver Module - 1000BASE-BX
In Stock
|
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Networking standards
IEEE 802.3z
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Technical details
Package width
92 mm
Package height
34 mm
Hot-Plug support
Yes
Maximum transfer distance
10000 m
Tx power (min)
1310 dBmW
Rx power (min)
1490 dBmW
Duplex system
Full
Sustainability certificates
RoHS
Performance
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
SFP transceiver type
Fiber optic
Wavelength-division multiplexing (WDM)
No
Digital Diagnostics Monitoring (DDM)
Yes
Fiber optic connector
LC
Networking standards
IEEE 802.3z
Maximum transfer distance
10000 m
Tx power (min)
1310 dBmW
Rx power (min)
1490 dBmW
Duplex system
Full
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Single-mode fiber (SMF) supported
Yes
SFP transceiver standard
BX
Features
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
Certification
CE- FCC- UR
Power
Power consumption (typical)
1 W
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
14 mm
Depth
57 mm
Height
13 mm
Weight
19 g
Package depth
116 mm
Package width
92 mm
Package height
34 mm
Package weight
48 g
Packaging data
Package depth
116 mm
Number of products included
1 pc(s)
Package width
92 mm
Package height
34 mm
Package weight
48 g
Certificates
Certification
CE- FCC- UR
Packaging content
Number of products included
1 pc(s)
Logistics data
Master (outer) case width
19.8 cm
Master (outer) case length
30.4 cm
Master (outer) case height
16.4 cm
Quantity per master (outer) case
20 pc(s)
StarTech MSA Compliant Transceiver Module - 1000BASE-BX
| Weight | 0.050000 lbs |
