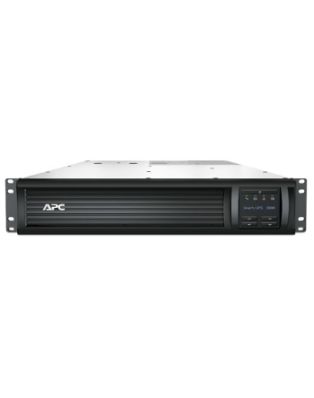

APC SMT3000RMI2U Smart-UPS 3000VA LCD RM 2U 230V
In Stock
|
Specifications
Power
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
320 J
Efficiency
0.99
Ports & interfaces
Cable length
2 m
USB port
Yes
AC outlets quantity
9 AC outlet(s)
AC outlet types
C13 couplerC19 coupler
Number of output IEC jumpers
3
Performance
Hold time (min)
4 ms
Hold time (max)
8 ms
UPS topology
Line-Interactive
Waveform
Sine
Auto-restart
Yes
Automatic Voltage Regulation (AVR)
Yes
LED indicators
Status
Noise level
55 dB
Audible alarm(s)
Yes
Features
Hold time (min)
4 ms
Hold time (max)
8 ms
UPS topology
Line-Interactive
Waveform
Sine
Auto-restart
Yes
Automatic Voltage Regulation (AVR)
Yes
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
320 J
Efficiency
0.99
Noise level
55 dB
Audible alarm(s)
Yes
Input frequency
50/60 Hz
Battery
Battery capacity
547 VAh
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Typical backup time at half load
11.5 min
Typical backup time at full load
3.2 min
Hot-swap battery
Yes
Cold start
Yes
Automatic battery test
Yes
Design
Rack capacity
2U
Form factor
Rackmount
LED indicators
Status
Product colour
Black
Energy Star certified
Yes
Cable length
2 m
RoHS compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 ‚°C
Storage temperature (T-T)
-15 - 45 ‚°C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Weight
44.3 kg
Width
480 mm
Height
86 mm
Depth
683 mm
Package width
600 mm
Package depth
980 mm
Package height
254 mm
Package weight
51.7 kg
Packaging data
Quick installation guide
Yes
Cables included
RS-232USB cable
Rack mount kit
Yes
Software CD
Yes
Package width
600 mm
Package depth
980 mm
Package height
254 mm
Package weight
51.7 kg
Logistics data
Quantity per pallet
8 pc(s)
Certificates
Energy Star certified
Yes
RoHS compliance
Yes
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Quick installation guide
Yes
Cables included
RS-232USB cable
Rack mount kit
Yes
Software CD
Yes
APC SMT3000RMI2U Smart-UPS 3000VA LCD RM 2U 230V
| Length | 68.30 in |
| Width | 48.00 in |
| Height | 8.60 in |
| Weight | 44.300000 lbs |
