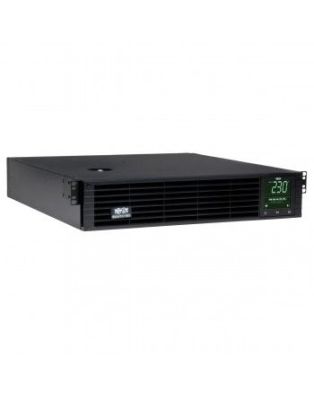

Tripp Lite SmartPro 230V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9
In Stock
|
Specifications
Power
Output power
1920 W
Input operation voltage (min)
158 V
Input operation voltage (max)
278 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
350 J
Maximum current
15 A
Efficiency
0.98
Emergency Power Off (EPO)
Yes
Power factor
0.9
Output power capacity
2200 VA
Battery
Battery type
RBC94-2U
Battery recharge time
4.5 h
Typical backup time at half load
11.9 min
Typical backup time at full load
5 min
Hot-swap battery
Yes
Performance
Number of input phases
1
Response time
4 ms
LED indicators
Yes
Surge protection
Yes
Audible alarm(s)
Yes
Features
Output frequency
50/60 Hz
Number of input phases
1
Response time
4 ms
Output power
1920 W
Input operation voltage (min)
158 V
Input operation voltage (max)
278 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
350 J
Maximum current
15 A
Efficiency
0.98
Surge protection
Yes
Emergency Power Off (EPO)
Yes
Power factor
0.9
Audible alarm(s)
Yes
Output power capacity
2200 VA
Input frequency
50/60 Hz
Ports & interfaces
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler
USB 2.0 ports quantity
1
Serial ports quantity
1
Design
Rack capacity
2U
Form factor
Rackmount
LED indicators
Yes
Product colour
Black
Certification
CE GOST SASO FCC
RoHS compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 ‚°C
Storage temperature (T-T)
-15 - 50 ‚°C
Operating relative humidity (H-H)
0 - 95%
Technical details
Output frequency
50/60 Hz
Weight & dimensions
Weight
27.7 kg
Width
444 mm
Height
89 mm
Depth
483 mm
Package width
614.7 mm
Package depth
546.1 mm
Package height
221 mm
Package weight
33.4 kg
Packaging data
Package width
614.7 mm
Package depth
546.1 mm
Package height
221 mm
Package weight
33.4 kg
Certificates
Certification
CE GOST SASO FCC
RoHS compliance
Yes
Other features
Battery type
RBC94-2U
Tripp Lite SmartPro 230V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9
| Length | 48.30 in |
| Width | 44.40 in |
| Height | 8.90 in |
| Weight | 27.700000 lbs |
