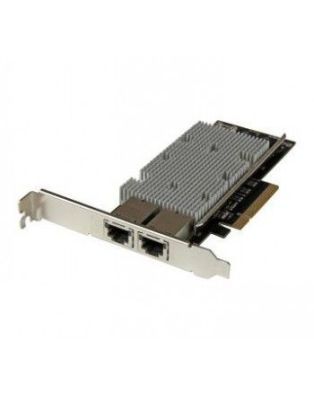

StarTech 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
In Stock
|
Ports & interfaces
Internal
Yes
Ethernet LAN (RJ-45) ports
2
Interface
Ethernet
Host interface
PCI Express
Connectivity technology
Wired
Bandwidth
Full duplex
Yes
Maximum data transfer rate
20000 Mbit/s
Network
Chipset
Intel - X540
VLAN tagging
Yes
Jumbo frames
15000
Ethernet LAN
Yes
Cabling technology
10/100/1000BaseT(X)
Networking standards
IEEE 802.3ad-IEEE 802.3q-IEEE 802.3u-IEEE 802.3an-IEEE 802.3az-IEEE 802.3ab
Wake-on-LAN ready
Yes
Auto MDIX IEEE
No
Jumbo frames support
Yes
Full duplex
Yes
Ethernet LAN data rates
10-1000-100 Mbit/s
Maximum data transfer rate
20000 Mbit/s
Auto-negotiation
Yes
Technical details
Product colour
Black- Stainless steel
Wake-on-LAN ready
Yes
Auto MDIX IEEE
No
Design
Product colour
Black- Stainless steel
Chipset
Intel - X540
Internal
Yes
LED indicators
Activity- Speed
Software
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64-Windows Vista Home Premium x64
Linux operating systems supported
Yes
Indication
LED indicators
Activity- Speed
System requirements
Server operating systems supported
Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64-Windows Vista Home Premium x64
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
5 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Weight & dimensions
Width
20 mm
Depth
163 mm
Height
120 mm
Weight
160 g
Package width
208 mm
Package depth
147 mm
Package height
40 mm
Package weight
242 g
Packaging data
Low-profile bracket
Yes
Package width
208 mm
Package depth
147 mm
Package height
40 mm
Package weight
242 g
Manual
Yes
Packaging content
Manual
Yes
Low-profile bracket
Yes
Performance
Server operating systems supported
Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019
Wake-on-LAN ready
Yes
Auto MDIX IEEE
No
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64-Windows Vista Home Premium x64
Linux operating systems supported
Yes
Auto-negotiation
Yes
Other features
Chipset
Intel - X540
Manual
Yes
Jumbo frames
15000
StarTech 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
| Weight | 0.240000 lbs |
