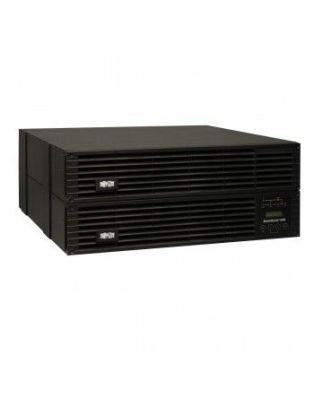

Tripp Lite SmartOnline 208/240, 230V 6kVA 5.4kW Double-Conversion UPS, 4U Rack/Tower, Extended Run, Network Card Options, USB, DB9 Serial, Bypass Switch, C19
In Stock
|
Specifications
Power
Output power
5400 W
Input operation voltage (min)
200 V
Input operation voltage (max)
240 V
Output operation voltage (min)
208 V
Output operation voltage (max)
240 V
Maximum current
40 A
Efficiency
0.96
Emergency Power Off (EPO)
Yes
Power factor
0.9
Crest factor
0.12569444444444
Output power capacity
6000 VA
Ports & interfaces
Cable length
3 m
AC outlets quantity
4 AC outlet(s)
AC outlet types
C19 coupler
USB 2.0 ports quantity
1
Serial ports quantity
1
RS-232 ports
1
Performance
Number of phases
1
LED indicators
Yes
EMI/RFI noise filtering
Yes
Noise level
60 dB
Audible alarm(s)
Yes
Features
Output power
5400 W
Input operation voltage (min)
200 V
Input operation voltage (max)
240 V
Output operation voltage (min)
208 V
Output operation voltage (max)
240 V
Maximum current
40 A
Efficiency
0.96
EMI/RFI noise filtering
Yes
Emergency Power Off (EPO)
Yes
Power factor
0.9
Noise level
60 dB
Crest factor
0.12569444444444
Audible alarm(s)
Yes
Output power capacity
6000 VA
Input frequency
50/60 Hz
Number of phases
1
Battery
Battery recharge time
6 h
Typical backup time at half load
8.5 min
Typical backup time at full load
2 min
Hot-swap battery
Yes
Design
Rack capacity
4U
Form factor
Rackmount
LED indicators
Yes
Product colour
Black
Display
LED
Cable length
3 m
RoHS compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 ‚°C
Storage temperature (T-T)
-15 - 50 ‚°C
Operating altitude
0 - 3000 m
Weight & dimensions
Weight
49 kg
Width
445 mm
Height
174 mm
Depth
526 mm
Package width
609.6 mm
Package depth
660.4 mm
Package height
863.6 mm
Package weight
86.2 kg
Packaging data
Package width
609.6 mm
Package depth
660.4 mm
Package height
863.6 mm
Package weight
86.2 kg
RoHS compliance
Yes
Other features
Number of phases
1
Input connection type
L6-30P
Relative humidity
0 - 95%
Management platform
SNMP
Tripp Lite SmartOnline 208/240, 230V 6kVA 5.4kW Double-Conversion UPS, 4U Rack/Tower, Extended Run, Network Card Options, USB, DB9 Serial, Bypass Switch, C19
| Length | 52.60 in |
| Width | 44.50 in |
| Height | 17.40 in |
| Weight | 49.000000 lbs |
