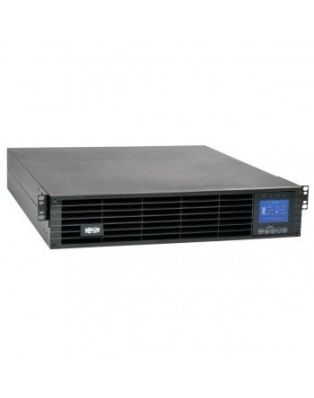

Tripp Lite SmartOnline 208/230V 2.2kVA 1.98kW Double-Conversion UPS, 2U Rack-Mount, Extended Run, Network Card Options, LCD, USB, DB9, ENERGY STAR
In Stock
|
Specifications
Power
Output voltage regulation
+/- 2%
Output power
1980 W
Input operation voltage (min)
200 V
Input operation voltage (max)
240 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Surge energy rating
936 J
Maximum current
10.94 A
Efficiency
0.9
Emergency Power Off (EPO)
Yes
Power factor
0.9
Crest factor
0.12569444444444
Output power capacity
2200 VA
Performance
Audible alarm modes
Battery replacement
UPS topology
Double-Conversion (Online)
Waveform
Sine
Number of phases
1
LED indicators
Yes
EMI/RFI noise filtering
Yes
Surge protection
Yes
Power protection features
Over voltageUnder voltage
Noise level
50 dB
Audible alarm(s)
Yes
Features
Audible alarm modes
Battery replacement
UPS topology
Double-Conversion (Online)
Waveform
Sine
Output voltage regulation
+/- 2%
Output power
1980 W
Input operation voltage (min)
200 V
Input operation voltage (max)
240 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Surge energy rating
936 J
Maximum current
10.94 A
Efficiency
0.9
EMI/RFI noise filtering
Yes
Surge protection
Yes
Emergency Power Off (EPO)
Yes
Power protection features
Over voltageUnder voltage
Power factor
0.9
Noise level
50 dB
Crest factor
0.12569444444444
Audible alarm(s)
Yes
Output power capacity
2200 VA
Input frequency
50/60 Hz
Number of phases
1
Ports & interfaces
Emergency Power Off (EPO) connector
Yes
AC outlets quantity
9 AC outlet(s)
AC outlet types
C13 couplerC19 coupler
Power plug
C20 coupler
USB 2.0 ports quantity
1
Serial ports quantity
1
Battery
Battery recharge time
3 h
Typical backup time at half load
11.7 min
Typical backup time at full load
4.3 min
Hot-swap battery
Yes
Cold start
Yes
Design
Rack capacity
2U
Form factor
Rackmount
LED indicators
Yes
Product colour
Black
Energy Star certified
Yes
Display
LCD
Cooling type
Active
Certification
CE EAC SASO UL1778
RoHS compliance
Yes
Housing material
Metal
Operational conditions
Operating temperature (T-T)
0 - 40 ‚°C
Storage temperature (T-T)
-15 - 50 ‚°C
Operating relative humidity (H-H)
5 - 95%
Cooling
Cooling type
Active
Weight & dimensions
Weight
23.1 kg
Width
438 mm
Height
88 mm
Depth
496 mm
Package width
564.9 mm
Package depth
700 mm
Package height
240 mm
Package weight
29 kg
Packaging data
Cables included
SerialUSB cable
Rack mount kit
Yes
Package width
564.9 mm
Package depth
700 mm
Package height
240 mm
Package weight
29 kg
Certificates
Energy Star certified
Yes
Certification
CE EAC SASO UL1778
RoHS compliance
Yes
Other features
Number of phases
1
Packaging content
Cables included
SerialUSB cable
Rack mount kit
Yes
Tripp Lite SmartOnline 208/230V 2.2kVA 1.98kW Double-Conversion UPS, 2U Rack-Mount, Extended Run, Network Card Options, LCD, USB, DB9, ENERGY STAR
| Length | 49.60 in |
| Width | 43.80 in |
| Height | 8.80 in |
| Weight | 23.100000 lbs |
