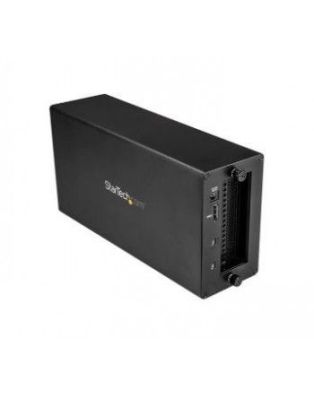

StarTech Thunderbolt 3 PCIe Expansion Chassis with DisplayPort - PCIe x16
In Stock
|
Ports & interfaces
Thunderbolt 3 ports quantity
2
Host interface
Thunderbolt 3
DisplayPorts quantity
1
Connectivity technology
Wired
Network
Ethernet LAN
No
Performance
Product colour
Black
Card reader integrated
No
LED indicators
Power
Data transfer rate
40 Gbit/s
Certification
CE- FCC- TAA- Thunderbolt- REACH
Rubber feet
Yes
Housing material
Aluminium- Steel
Maximum airflow
14.06 cfm
Technical details
Product colour
Black
Data transfer rate
40 Gbit/s
Cable length
0.5 m
PCI slot
1 x PCIe x16
Sustainability certificates
RoHS
Maximum port bandwidth
3.94 GB/s
Cooling
Built-in fan
Yes
Number of fans
1 fan(s)
Bearing type
Sleeve bearing
Fan diameter
6 cm
Noise level
24.55 dB
Maximum airflow
14.06 cfm
Storage
Card reader integrated
No
Power
Input current
2 A
Power plug type
Type N
Compatible power plug types
AU- EU- JP- UK- US
AC input voltage
100 - 240 V
Power consumption (typical)
65 W
Output voltage
12 V
Output current
5.417 A
Software
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 Pro-Windows 10 Pro x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.15 Catalina
Mac compatibility
Yes
Indication
LED indicators
Power
Weight & dimensions
Weight
1.6 kg
Width
142 mm
Depth
280 mm
Height
82 mm
Package weight
3.1 kg
Package width
290 mm
Package depth
360 mm
Package height
145 mm
Design
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 Pro-Windows 10 Pro x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.15 Catalina
Product colour
Black
LED indicators
Power
Certification
CE- FCC- TAA- Thunderbolt- REACH
Rubber feet
Yes
Packaging data
Package weight
3.1 kg
Package width
290 mm
Package depth
360 mm
Package height
145 mm
Packaging content
Quick start guide
Yes
Cables included
Thunderbolt
AC adapter included
Yes
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
20 - 80%
Certificates
Certification
CE- FCC- TAA- Thunderbolt- REACH
Other features
Chipset
Intel - Alpine Ridge DSL6540
Cable length
0.5 m
PCI slot
1 x PCIe x16
Maximum port bandwidth
3.94 GB/s
StarTech Thunderbolt 3 PCIe Expansion Chassis with DisplayPort - PCIe x16
| Length | 28.00 in |
| Width | 14.20 in |
| Height | 8.20 in |
| Weight | 1.600000 lbs |
