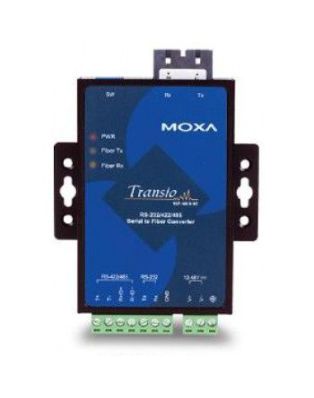

Moxa TCF-142-M-SC-T serial converter/repeater/isolator RS-232/422/485 Fiber (SC)
In Stock
|
Technical details
Wavelength
850 nm
TX output
-5 dB
Transmission distance (multi-mode)
5 km
Surge protection voltage
2 kV
RX sensitivity
-20 dB
RS-422 signals
RxD+-RxD--SGND-TxD+-TxD-
RS-232 signals
GND-Rx-Tx
Over current protection
Yes
Output interface
Fiber (SC)
Host interface
RS-232/422/485
Fiber optic connector
SC
Electrostatic Discharge (ESD) protection
15 kV
Baud rate
921.6 Kbit/s
Weight & dimensions
Dimensions (WxDxH)
67 x 100 x 22 mm
Power
Power consumption
140 mA
Input voltage
12 - 48 V
Operational conditions
Storage temperature (T-T)
-40 - 85 °C
Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Certificates
Safety
UL/CUL- TUV
Certification
EN- FCC
Indication
LED indicators
Yes
Moxa TCF-142-M-SC-T serial converter/repeater/isolator RS-232/422/485 Fiber (SC)
| Weight | 1.000000 lbs |
