Display
Display technology
LCD
Viewing angle vertical
178°
Viewing angle horizontal
178°
Vertical scan range
50 - 75 Hz
Touchscreen technology
Projected capacitive system
Tilt angle range
20 - 53°
Pixel pitch
0.2715 x 0.2715 mm
Horizontal scan range
24 - 82 kHz
Display viewable area (HxV)
521.28 x 293.22 mm
Display resolution
1920 x 1080 pixels
Display diagonal (metric)
60 cm
Contrast ratio (dynamic)
50000000:1
Display diagonal
59.9 cm (23.6")
Contrast ratio (typical)
125.00069444444
Display brightness
200 cd/m²
Native aspect ratio
0.67291666666667
Panel type
VA
HD type
Full HD
Design
Product colour
Black
Performance
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Built-in microphone
No
Built-in camera
No
Number of speakers
2
Touchscreen type
Multi-user
Windows operating systems supported
Windows 10Windows 7Windows 8
Touchscreen technology
Projected capacitive system
RMS rated power
5 W
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Built-in speaker(s)
Yes
Mobile operating systems supported
Android
Other operating systems supported
Android
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
Headphone outputs
1
HDMI ports quantity
1
DisplayPorts quantity
1
Cables included
AC Audio (3.5mm) HDMI USB
HDMI
Yes
Built-in USB hub
Yes
HDMI version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
DisplayPort version
1.2
Headphone out
Yes
Ergonomics
VESA mounting
Yes
Wall mountable
Yes
Panel mounting interface
100 x 100 mm
Tilt angle range
20 - 53°
Tiltable
Yes
Power
AC input voltage
100-240 V
AC input frequency
50/60 Hz
Power supply type
AC
Power consumption (typical)
25 W
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
15 kWh
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 90%
Technical details
Height (with stand)
353 mm
Depth (with stand)
47 mm
Touchscreen type
Multi-user
Power supply type
AC
Package weight
7.08 kg
Sustainability certificates
CE ENERGY STAR ErP REACH RoHS

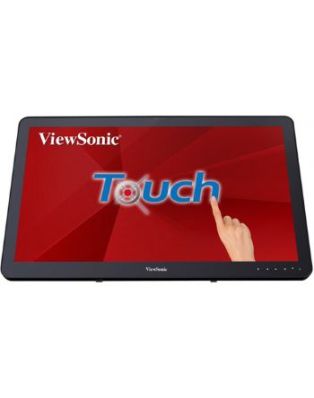

Viewsonic TD2430 touch screen monitor 59.9 cm (23.6") 1920 x 1080 pixels Black Multi-touch Kiosk
Weight | 1.000000 lbs |
