Wireless LAN features
WLAN data transfer rates supported
11-54-300 Mbit/s
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)
300 Mbit/s
Wi-Fi band
Single-band (2.4 GHz)
Wi-Fi standards
802.11b-802.11g-Wi-Fi 4 (802.11n)
Ethernet LAN features
Ethernet WAN
Yes
Ethernet LAN interface type
Fast Ethernet
Ethernet LAN
Yes
Full duplex
Yes
Ethernet LAN data rates
10-100 Mbit/s
Cabling technology
10/100Base-T(X)
DSL features
DSL WAN
No
xDSL connection
No
Mobile network
SIM card slot
No
3G/4G USB modem compatibility
No
Mobile network connection
No
3G
No
4G
No
Protocols
DMZ support
Yes
Universal Plug and Play (UPnP)
Yes
DHCP server
Yes
DHCP client
Yes
Management features
Universal Plug and Play (UPnP)
Yes
Web-based management
Yes
Reset button
Yes
Quality of Service (QoS) support
Yes
Security
VPN support
PPTP- L2TP- IPSec
Security algorithms
128-bit WEP-152-bit WEP-64-bit WEP-SSID-WPA-WPA-PSK-WPA2-WPA2-PSK-WPS
MAC address filtering
Yes
Firewall security
SPI
Firewall
Yes
DoS attack prevention
Yes
DMZ support
Yes
Filtering
Yes
Stateful Packet Inspection (SPI)
Yes
Performance
Windows operating systems supported
Windows 2000-Windows 2000 Professional-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 98SE-Windows NT-Windows Vista Business-Windows Vista Business x64-Windows Vista Enterprise-Windows Vista Enterprise x64-Windows Vista Home Basic-Windows Vista Home Basic x64-Windows Vista Home Premium-Windows Vista Home Premium x64-Windows Vista Ultimate-Windows Vista Ultimate x64-Windows XP Home-Windows XP Home x64-Windows XP Professional-Windows XP Professional x64
Mac operating systems supported
macOS
Linux operating systems supported
Yes
Memory card slot(s)
No
Weight & dimensions
Package width
288 mm
Package weight
520 g
Package height
86 mm
Package depth
202 mm
Width
174 mm
Weight
700 g
Height
28 mm
Depth
119 mm
Certificates
Certification
CE- FCC- RoHS
Packaging content
Quick start guide
Yes
Cables included
LAN (RJ-45)
AC adapter included
Yes
WAN connection
Ethernet WAN
Yes
DSL WAN
No
SIM card slot
No
3G/4G USB modem compatibility
No
Network
Ethernet LAN interface type
Fast Ethernet
Ethernet LAN
Yes
VPN support
PPTP- L2TP- IPSec
Port forwarding
Yes
Networking standards
IEEE 802.11b-IEEE 802.11g-IEEE 802.11n-IEEE 802.3-IEEE 802.3u
Full duplex
Yes
Ethernet LAN data rates
10-100 Mbit/s
Cabling technology
10/100Base-T(X)
Port triggering
Yes
VPN Passthrough
Yes
Dynamic DNS (DDNS)
Yes
Ports & interfaces
USB port
No
Ethernet LAN (RJ-45) ports
4
DC-in jack
Yes
Memory card slot(s)
No
Design
Product type
Tabletop router
On/off switch
Yes
LED indicators
Power- Status- WLAN
Product colour
Black- White
Software
Windows operating systems supported
Windows 2000-Windows 2000 Professional-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 98SE-Windows NT-Windows Vista Business-Windows Vista Business x64-Windows Vista Enterprise-Windows Vista Enterprise x64-Windows Vista Home Basic-Windows Vista Home Basic x64-Windows Vista Home Premium-Windows Vista Home Premium x64-Windows Vista Ultimate-Windows Vista Ultimate x64-Windows XP Home-Windows XP Home x64-Windows XP Professional-Windows XP Professional x64
Mac operating systems supported
macOS
Linux operating systems supported
Yes
Antenna
Receive power
270M: -70dBm@10% PER130M: -74dBm@10% PER108M: -74dBm@10% PER54M: -77dBm@10% PER11M: -87dBm@8% PER6M: -90dBm@10% PER1M: -98dBm@8% PER
Detachable antenna(s)
No
Antennas quantity
2
Antenna type
External
Antenna gain level (max)
5 dBi
Transmit power
20 dBmW
Features
Certification
CE- FCC- RoHS
Power
Power source type
DC
Power consumption (typical)
8 W
Output voltage
9 V
Output current
0.6 A
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
System requirements
Windows operating systems supported
Windows 2000-Windows 2000 Professional-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 98SE-Windows NT-Windows Vista Business-Windows Vista Business x64-Windows Vista Enterprise-Windows Vista Enterprise x64-Windows Vista Home Basic-Windows Vista Home Basic x64-Windows Vista Home Premium-Windows Vista Home Premium x64-Windows Vista Ultimate-Windows Vista Ultimate x64-Windows XP Home-Windows XP Home x64-Windows XP Professional-Windows XP Professional x64
Mac operating systems supported
macOS
Linux operating systems supported
Yes
Packaging data
Quick start guide
Yes
Package width
288 mm
Package weight
520 g
Package height
86 mm
Package depth
202 mm
Cables included
LAN (RJ-45)
AC adapter included
Yes
Other features
xDSL connection
No
Mobile network connection
No
WLAN data transfer rates supported
11-54-300 Mbit/s
Rack mounting
No
Input current
0.6 A
Frequency band
2.4 GHz
Filtering description
IP- MAC- URL

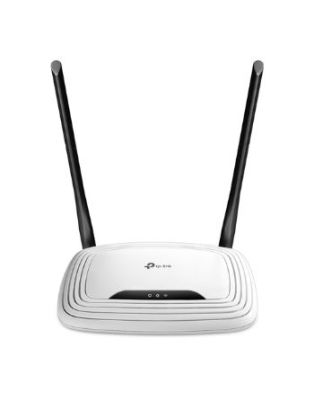

TP-LINK 300Mbps Wireless N WiFi Router
Weight | 1.000000 lbs |
