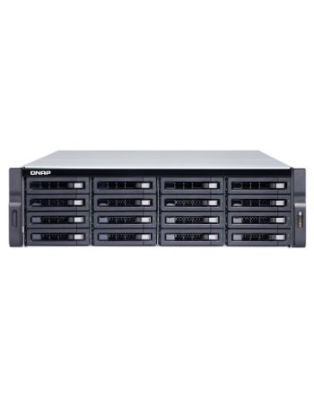

QNAP TS-1683XU-RP-E2124-16G 256TB 16x16TB Seagate Exos 16 Bay NAS Rackmount
In Stock
|
Storage
Total installed storage capacity
256 TB
Online RAID migration
Yes
Online RAID expansion
Yes
Disk roaming
Yes
Bad block scan
Yes
Storage drives installed
Yes
Installed storage drive type
HDD
Number of storage drives installed
16
Supported storage drive types
HDD & SSD
Number of storage drives supported
16
Storage drive interface
Serial ATA III
Storage drive capacity
16000 GB
Hot-swap drive bays
Yes
RAID support
Yes
Supported file systems
FAT32-HFS+-NTFS-ext3-ext4
RAID levels
0-5+S-5-6-6+HS-10+HS-10-50-60-JBOD
Supported storage drive interfaces
Serial ATA II- Serial ATA III
Storage drive sizes supported
2.5-3.5"
RAID rebuild
Yes
Processor
Processor manufacturer
Intel
CPU configuration (max)
1
Bus type
DMI3
Processor frequency
3.3 GHz
Processor family
Intel® Xeon®
Processor model
E-2124
Memory
Internal memory type
DDR4
Internal memory
16 GB
Memory clock speed
2666 MHz
Maximum RAM supported
128 GB
Memory slots
4x LDIMM
Flash memory
5120 MB
Memory form factor
DIMM
ECC
Yes
Network
Load balancing system
Yes
Link aggregation
Yes
Ethernet LAN data rate supported (max)
10000 Mbit/s
Dynamic DNS (DDNS)
Yes
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000-10000 Mbit/s
Wake-on-LAN ready
Yes
Jumbo frames support
Yes
iSCSI support
Yes
DHCP server
Yes
DHCP client
Yes
WLAN adapter supported
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
PCI Express x8 (Gen 3.x) slots
1
PCI Express x4 (Gen 3.x) slots
2
Fiber ports quantity
2
Fiber optic connector
SFP+
Ethernet LAN (RJ-45) ports
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
Hard drive
RAID support
Yes
Supported file systems
FAT32-HFS+-NTFS-ext3-ext4
RAID levels
0-5+S-5-6-6+HS-10+HS-10-50-60-JBOD
Design
Cooling type
Active
Fan diameter
9.2 cm
Product colour
Aluminium- Black
Number of fans
4 fan(s)
LED indicators
HDD- LAN- Status
Chassis type
Rack (3U)
Technical details
Type
NAS
Device class
Large Enterprise Business
Backup function
Yes
Backup features
Cloud- iSCSI LUN
Product colour
Aluminium- Black
Noise level
53 dB
LED indicators
HDD- LAN- Status
Chassis type
Rack (3U)
Buzzer
Yes
Number of fans
4 fan(s)
Performance
Built-in FTP server
Yes
System log
Yes
Share folder access right management
Yes
S.M.A.R.T. support
Yes
Hot spare
Yes
Browser supported
Apple Safari 7+- Google Chrome- Microsoft Internet Explorer 10+- Mozilla Firefox
Universal Plug and Play (UPnP)
Yes
Built-in BitTorrent client
Yes
Type
NAS
Device class
Large Enterprise Business
Backup function
Yes
Backup features
Cloud- iSCSI LUN
On/off switch
Yes
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64
Server operating systems supported
Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016
Mac operating systems supported
Mac OS X 10.7 Lion-Mac OS X 10.8 Mountain Lion-Mac OS X 10.9 Mavericks-Mac OS X 11.0 Big Sur
Linux operating systems supported
Yes
Web-based management
Yes
Security algorithms
256-bit AES-FIPS 140-2-HTTPS-SNMP-SSH
Reset button
Yes
Operating system version
4.3.5
Operating system installed
QNAP Turbo System
Noise level
53 dB
Management protocols
SNMP
Buzzer
Yes
Access Control List (ACL)
Yes
Third-party support
Yes
Snapshot
Yes
Cooling
Cooling type
Active
Fan diameter
9.2 cm
Fan voltage
12 V
Number of fans
4 fan(s)
Security
Security algorithms
256-bit AES-FIPS 140-2-HTTPS-SNMP-SSH
Access Control List (ACL)
Yes
Software
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64
Server operating systems supported
Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016
Mac operating systems supported
Mac OS X 10.7 Lion-Mac OS X 10.8 Mountain Lion-Mac OS X 10.9 Mavericks-Mac OS X 11.0 Big Sur
Linux operating systems supported
Yes
Operating system version
4.3.5
Operating system installed
QNAP Turbo System
Management features
On/off switch
Yes
Web-based management
Yes
Reset button
Yes
Management protocols
SNMP
Power
Power supply location
Built-in
Power supply unit (PSU) capacity
500 W
Fan voltage
12 V
AC input voltage
100 - 240 V
Redundant power supply (RPS) support
Yes
Power consumption (typical)
130.43 W
Number of power supply units
2
Weight & dimensions
Width
481 mm
Depth
573.5 mm
Height
130 mm
Weight
13.8 kg
Package weight
21.8 kg
Packaging content
Number of screws
128
Cables included
AC- LAN (RJ-45)
Processor special features
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI version
1.00
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel Secure Key Technology version
1.00
Intel Enhanced Halt State
Yes
Intel 64
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
Embedded options available
No
System requirements
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64
Server operating systems supported
Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016
Mac operating systems supported
Mac OS X 10.7 Lion-Mac OS X 10.8 Mountain Lion-Mac OS X 10.9 Mavericks-Mac OS X 11.0 Big Sur
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Packaging data
Package weight
21.8 kg
Cables included
AC- LAN (RJ-45)
QNAP TS-1683XU-RP-E2124-16G 256TB 16x16TB Seagate Exos 16 Bay NAS Rackmount
| Length | 57.35 in |
| Width | 48.10 in |
| Height | 13.00 in |
| Weight | 13.800000 lbs |
