Ports & interfaces | |
---|---|
Internal | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Interface | Ethernet |
Host interface | PCI Express |
Connectivity technology | Wired |
Bandwidth | |
Maximum data transfer rate | 10000 Mbit/s |
Technical details | |
Product colour | Red |
Sustainability certificates | RoHS |
Software | |
Windows operating systems supported | Windows 10-Windows 7-Windows 8-Windows 8.1 |
Linux operating systems supported | Yes |
Network | |
Ethernet interface type | 2.5 Gigabit Ethernet- 5 Gigabit Ethernet- 10 Gigabit Ethernet- Fast Ethernet- Gigabit Ethernet |
Ethernet LAN | Yes |
Networking standards | IEEE 802.3-IEEE 802.3ab-IEEE 802.3an-IEEE 802.3az-IEEE 802.3bz-IEEE 802.3u-IEEE 802.3x |
Ethernet LAN data rates | 100-1000-2500-5000-10000 Mbit/s |
Maximum data transfer rate | 10000 Mbit/s |
Performance | |
Server operating systems supported | Windows Server 2012 R2-Windows Server 2016-Windows Server 2019 |
Windows operating systems supported | Windows 10-Windows 7-Windows 8-Windows 8.1 |
Linux operating systems supported | Yes |
Design | |
Product colour | Red |
Certification | FCC- CE |
Internal | Yes |
Component for | PC |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
Packaging content | |
Mounting brackets included | Yes |
Quick installation guide | Yes |
Cables included | LAN (RJ-45) |
Resource CD | Yes |
System requirements | |
Server operating systems supported | Windows Server 2012 R2-Windows Server 2016-Windows Server 2019 |
Windows operating systems supported | Windows 10-Windows 7-Windows 8-Windows 8.1 |
Linux operating systems supported | Yes |
Weight & dimensions | |
Width | 120.8 mm |
Depth | 98.2 mm |
Height | 21.5 mm |
Packaging data | |
Mounting brackets included | Yes |
Quick installation guide | Yes |
Cables included | LAN (RJ-45) |
Certificates | |
Certification | FCC- CE |

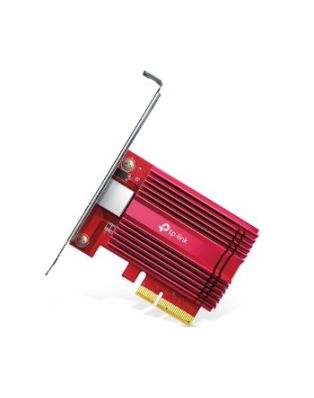

TP-LINK TX401 networking card Internal Ethernet 10000 Mbit/s
Weight | 1.000000 lbs |
