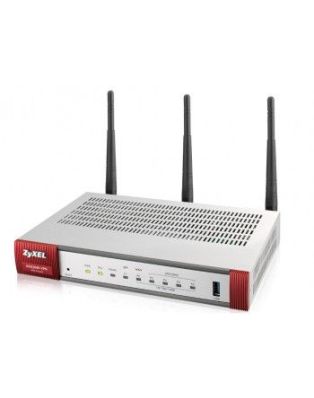

Zyxel USG20W-VPN-EU0101F wireless router Dual-band (2.4 GHz / 5 GHz) Gigabit Ethernet Grey, Red
In Stock
|
Ethernet LAN features
Ethernet WAN
Yes
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN
Yes
Full duplex
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Auto MDI/MDI-X
Yes
Cabling technology
10/100/1000Base-T(X)
DSL features
DSL WAN
No
Mobile network
SIM card slot
No
3G/4G USB modem compatibility
No
3G
No
4G
No
Protocols
DMZ support
Yes
Universal Plug and Play (UPnP)
Yes
DHCP server
Yes
DHCP client
Yes
Management features
Universal Plug and Play (UPnP)
Yes
Web-based management
Yes
Reset button
Yes
Quality of Service (QoS) support
Yes
Security
VPN tunnels quantity
10
System event log
Yes
Security algorithms
SSID-SSL/TLS
MAC address filtering
Yes
Firewall
Yes
DMZ support
Yes
Filtering
Yes
Performance
Mean time between failures (MTBF)
44000 h
Heat dissipation
61.38 BTU/h
Weight & dimensions
Package width
276 mm
Package weight
1.5 kg
Package height
98 mm
Package depth
185 mm
Width
216 mm
Weight
1.14 kg
Height
33 mm
Depth
143 mm
Certificates
Safety
BSMI- UL
Electromagnetic compatibility
FCC Part 15 (Class B)- IC- CE EMC (Class B)- RCM- BSMI
Packaging content
Cables included
LAN (RJ-45)
AC adapter included
Yes
WAN connection
Ethernet WAN
Yes
DSL WAN
No
SIM card slot
No
3G/4G USB modem compatibility
No
Wireless LAN features
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)
1300 Mbit/s
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards
802.11a-Wi-Fi 5 (802.11ac)-802.11b-802.11g-Wi-Fi 4 (802.11n)
Network
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN
Yes
VPN tunnels quantity
10
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11g-IEEE 802.11n-IEEE 802.3-IEEE 802.3ab-IEEE 802.3u
Full duplex
Yes
Flow control support
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Auto MDI/MDI-X
Yes
Cabling technology
10/100/1000Base-T(X)
Ports & interfaces
USB port
No
Ethernet LAN (RJ-45) ports
4
DC-in jack
Yes
Design
Product type
Portable router
On/off switch
Yes
LED indicators
Activity- LAN- Power- WAN- WLAN- WPS
Product colour
Grey- Red
Indication light
Yes
Antenna
Detachable antenna(s)
Yes
Antennas quantity
3
Antenna type
External
Antenna gain level (max)
3 dBi
Antenna connector type
N-type
Features
Safety
BSMI- UL
Mean time between failures (MTBF)
44000 h
Heat dissipation
61.38 BTU/h
Electromagnetic compatibility
FCC Part 15 (Class B)- IC- CE EMC (Class B)- RCM- BSMI
Power
Power source type
DC
Power consumption (typical)
18 W
Operational conditions
Storage temperature (T-T)
-30 - 70 °C
Storage relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Packaging data
Package width
276 mm
Package weight
1.5 kg
Package height
98 mm
Package depth
185 mm
Cables included
LAN (RJ-45)
AC adapter included
Yes
Other features
USB ports quantity
1
Frequency band
2.4 & 5
Zyxel USG20W-VPN-EU0101F wireless router Dual-band (2.4 GHz / 5 GHz) Gigabit Ethernet Grey, Red
| Length | 14.30 in |
| Width | 21.60 in |
| Height | 3.30 in |
| Weight | 1.140000 lbs |
