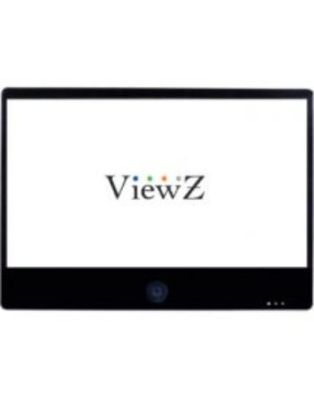

ViewZ VZ-PVM-Z2B3 23" Full HD Widescreen LED Backlit Monitor with Built-In 1.3MP Camera (Black)
In Stock
|
Display
Screen Size
23" (58.42 cm)
Maximum Resolution
1920 x 1080 60 Hz
Pixel Pitch
0.2655 x 0.2655 mm
Brightness
250 cd/m² (typical)
Contrast Ratio
41.667361111111
Aspect Ratio
0.67291666666667
Viewing Angle (H/V)
160°/160°
Display Color
16.7 million
Response Time
Video System
NTSC / PAL
Frequency
Horizontal: 31 to 80 kHz
Interface
Composite
AV: 1 x in 1 x out
Camera Out
1
DVI Input
1
HDMI In
2
RGB Input
1 x 15-pin D-Sub
Composite
AV Sound: 1 x in 1 x out (RCA type)
PC Stereo In
1
Speaker Out
1
Special Features
Video Resolution
Maximum 600 TVL
Camera Mounting Hole
3 (top left right)
Mount
VESA Compatibility
200 x 200 mm
Camera
Active Pixels
1280(H) x 720p(V)
Video Out
1-channel CVBS (NTSC/PAL)
Motion Detection
Supported
Minimum Illumination
0.5 lux 50 IRE f/1.2
General
Power Consumption
Dual Voltage:
110 VAC (50/60Hz): 0.5 A (50 W)
Operating Temperature
32 to 104°F (0 to 40°C)
MTBF
Approximately 50000 hours
Regulations
UL listed FCC RoHS
Compatible Mounts
Wall: VZ-WM05 VZ-WM11 VZ-AM01
Dimensions (W x H x D)
21.25 x 16.18 x 3.27" (539.8 x 411 x 83 mm)
Weight
21.67 lb (9.83 kg)
Packaging Info
Package Weight
27 lb
Box Dimensions (LxWxH)
28 x 23 x 8"
ViewZ VZ-PVM-Z2B3 23" Full HD Widescreen LED Backlit Monitor with Built-In 1.3MP Camera (Black)
| Length | 28 in |
| Width | 8 in |
| Height | 23 in |
| Weight | 1.000000 lbs |
