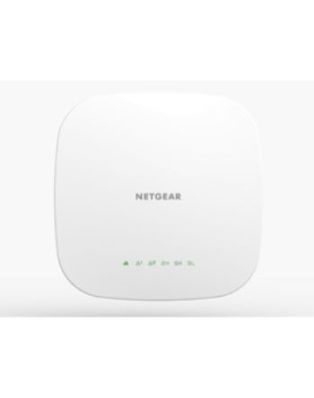

Netgear WAC540 1733 Mbit/s Power over Ethernet (PoE) White
In Stock
|
Data transmission
Ethernet LAN data rates
10-100-1000 Mbit/s
Maximum data transfer rate
1733 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia‚ (WMM)/(WME)
Yes
Auto Wireless Distribution System (WDS)
Yes
Auto MDI/MDI-X
Yes
Reset button
Yes
Number of users
600 user(s)
Web-based management
Yes
VLAN support
Yes
Modulation
256-QAM
Ethernet LAN data rates
10-100-1000 Mbit/s
Maximum data transfer rate
1733 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Wi-Fi roaming
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Load balancing
Yes
Remote Authentication Dial-In User Service (RADIUS)
Yes
Wireless LAN features
Modulation
256-QAM
Network
Internal
No
Number of users
600 user(s)
Management features
VLAN support
Yes
Web-based management
Yes
Features
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia‚ (WMM)/(WME)
Yes
Auto MDI/MDI-X
Yes
Number of users
600 user(s)
VLAN support
Yes
Modulation
256-QAM
Ethernet LAN data rates
10-100-1000 Mbit/s
Maximum data transfer rate
1733 Mbit/s
Adaptive bandwidth management
Yes
MIMO type
Multi User MIMO
MIMO
Yes
Wi-Fi roaming
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Load balancing
Yes
Throughput data rate
3000 Mbit/s
WLAN channel features
WLAN channel management
Security
Auto Wireless Distribution System (WDS)
Yes
MAC address filtering
Yes
Access Control List (ACL)
Yes
Remote Authentication Dial-In User Service (RADIUS)
Yes
Service Set Identifier (SSID) features
SSID broadcast on/off
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
Power
Power consumption (typical)
25.5 W
Power over Ethernet (PoE)
Yes
Input voltage
12 V
Input current
2.5 A
Power management
Yes
Design
Placement
Ceiling-Wall
Product colour
White
Reset button
Yes
Internal
No
LED indicators
LAN-Power-WLAN
Antenna
Antenna type
Internal
Antenna gain level (max)
4 dBi
Antenna features
Integrated antenna
Technical details
Reset button
Yes
Power management
Yes
Indication
LED indicators
LAN-Power-WLAN
Software
Access Control List (ACL)
Yes
Adaptive bandwidth management
Yes
Weight & dimensions
Width
241.5 mm
Depth
241.5 mm
Weight
752 g
Height
40.2 mm
Package width
296 mm
Package depth
292 mm
Package height
108 mm
Package weight
1.3 kg
Packaging data
Mounting kit
Yes
Package width
296 mm
Package depth
292 mm
Package height
108 mm
Package weight
1.3 kg
Logistics data
Master (outer) case width
32 cm
Master (outer) case length
60 cm
Master (outer) case height
27.8 cm
Master (outer) case weight
6.46 kg
Quantity per master (outer) case
4 pc(s)
Packaging content
Mounting kit
Yes
Other features
Power management
Yes
Netgear WAC540 1733 Mbit/s Power over Ethernet (PoE) White
