Ports & interfaces
Copper ethernet cabling technology
10BASE-T-100BASE-T-1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Private VLAN
Performance
Packet buffer memory
0.192 MB
Stackable
No
Auto-negotiation
Yes
Harmonized System (HS) code
8517.62.0050
Fanless
Yes
Technical details
Form factor
1U
Product colour
Grey
Stackable
No
Rack mounting
Yes
Management features
Switch type
Unmanaged
Web-based management
Yes
Network
Copper ethernet cabling technology
10BASE-T-100BASE-T-1000BASE-T
Full duplex
Yes
VLAN support
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Half duplex
Yes
Virtual LAN features
Private VLAN
Data transmission
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (1 Gbps)
1488000 pps
Jumbo frames
9216
Packet buffer memory
0.192 MB
MAC address table
4000 entries
Switching capacity
16 Gbit/s
Jumbo frames support
Yes
Security
Loop protection
Yes
BPDU filtering/protection
Yes
Security algorithms
EAP
Memory
Packet buffer memory
0.192 MB
Design
Wall mountable
Yes
Form factor
1U
Product colour
Grey
Stackable
No
LED indicators
Yes
Rack mounting
Yes
Indication
LED indicators
Yes
Power
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
1.7 A
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
7.5 W
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
62 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 90%
Operating altitude
0 - 2000 m
Heat dissipation
254 BTU/h
Weight & dimensions
Width
210 mm
Depth
275 mm
Height
42.5 mm
Weight
1.6 kg

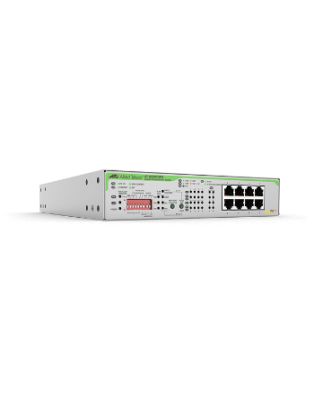

Allied Telesis 8X UNMANAGED P +SWITCH
Length | 27.50 in |
Width | 21.00 in |
Height | 4.25 in |
Weight | 1.600000 lbs |
