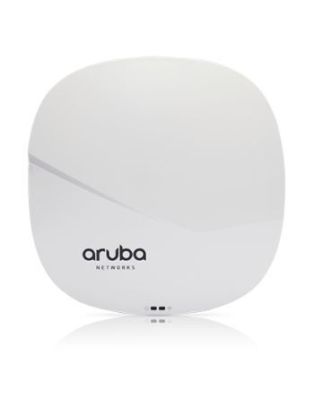

HPE Aruba Instant IAP-324 (RW) - Wireless access point - Wi-Fi 5 - 2.4 GHz, 5 GHz - in-ceiling
In Stock
|
Data transmission
Wi-Fi data rate (max)
1750 Mbit/s
Ethernet LAN data rates
101001000 Mbit/s
Maximum data transfer rate
1750 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Auto MDI/MDI-X
Yes
Wi-Fi data rate (max)
1750 Mbit/s
Transmitting power
24 dBmW
Reset button
Yes
Firmware upgradeable
Yes
Spread spectrum method
DSSS
Quality of Service (QoS) support
Yes
Ethernet LAN data rates
101001000 Mbit/s
Channel bandwidth
80 MHz
Maximum data transfer rate
1750 Mbit/s
MIMO
Yes
Network
Internal
No
Spread spectrum method
DSSS
Bandwidth
Channel bandwidth
80 MHz
Security
Cable lock slot
Yes
Management features
Quality of Service (QoS) support
Yes
Firmware upgradeable
Yes
Features
2.4 GHz
Yes
5 GHz
Yes
Auto MDI/MDI-X
Yes
Wi-Fi data rate (max)
1750 Mbit/s
Transmitting power
24 dBmW
Spread spectrum method
DSSS
Quality of Service (QoS) support
Yes
Ethernet LAN data rates
101001000 Mbit/s
Channel bandwidth
80 MHz
Maximum data transfer rate
1750 Mbit/s
MIMO
Yes
Ports & interfaces
WAN connection
Ethernet (RJ-45)
USB connector type
USB Type-A
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
Power
Power consumption (max)
20 W
Power over Ethernet (PoE)
Yes
Design
Product colour
White
Reset button
Yes
Internal
No
LED indicators
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Antenna
Number of connectors
8
Antenna connector type
RP-SMA
Antenna features
Detachable antenna
Technical details
Transmitting power
24 dBmW
Reset button
Yes
Firmware upgradeable
Yes
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Indication
LED indicators
Yes
Weight & dimensions
Width
7.99" (203 mm)
Depth
7.99" (203 mm)
Weight
33.5 oz (950 g)
Height
2.24" (57 mm)
Package width
12.4" (315 mm)
Package depth
10.4" (265 mm)
Package height
3.94" (100 mm)
Package weight
2.98 lbs (1.35 kg)
Packaging data
Mounting kit
Yes
Package width
12.4" (315 mm)
Package depth
10.4" (265 mm)
Package height
3.94" (100 mm)
Package weight
2.98 lbs (1.35 kg)
AC adapter included
No
Packaging content
Mounting kit
Yes
AC adapter included
No
HPE Aruba Instant IAP-324 (RW) - Wireless access point - Wi-Fi 5 - 2.4 GHz, 5 GHz - in-ceiling
