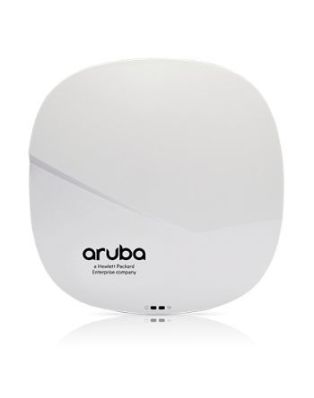

HPE Aruba AP-314 - Wireless access point - Wi-Fi 5 - 2.4 GHz, 5 GHz - in-ceiling
In Stock
|
| Data transmission | |
|---|---|
| Wi-Fi data rate (max) | 1733 Mbit/s |
| Ethernet LAN data rates | 101001000 Mbit/s |
| Maximum data transfer rate | 1733 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Wi-Fi data rate (max) | 1733 Mbit/s |
| Transmitting power | 21 dBmW |
| Reset button | Yes |
| Ethernet LAN data rates | 101001000 Mbit/s |
| Maximum data transfer rate | 1733 Mbit/s |
| Networking | |
| Internal | No |
| Security | |
| Cable lock slot | Yes |
| Number of SSID supported | 16 |
| Security algorithms | 802.1x RADIUSWEPWPAWPA2WPS |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Wi-Fi data rate (max) | 1733 Mbit/s |
| Transmitting power | 21 dBmW |
| Ethernet LAN data rates | 101001000 Mbit/s |
| Maximum data transfer rate | 1733 Mbit/s |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45) |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 14.4 W |
| Power consumption (typical) | 12.7 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| Internal | No |
| LED indicators | LinkPowerY |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antenna type | External |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5.7 dBi |
| Antenna connector type | RP-SMA |
| Technical details | |
| Transmitting power | 21 dBmW |
| Reset button | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 50% |
| Operating temperature (T-T) | 5 - 93 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Indication | |
| LED indicators | LinkPowerY |
| Weight & dimensions | |
| Width | 7.17" (182 mm) |
| Depth | 7.09" (180 mm) |
| Weight | 22.9 oz (650 g) |
| Height | 1.89" (48 mm) |
| Package width | 8.78" (223 mm) |
| Package depth | 8.58" (218 mm) |
| Package height | 2.17" (55 mm) |
| Package weight | 30 oz (850 g) |
HPE Aruba AP-314 - Wireless access point - Wi-Fi 5 - 2.4 GHz, 5 GHz - in-ceiling
| Weight | 1.000000 lbs |
