Data transmission
Ethernet LAN data rates
10-100-1000 Mbit/s
Maximum data transfer rate
1774 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Auto MDI/MDI-X
Yes
Spread spectrum method
DSSS-OFDM-OFDMA
Ethernet LAN data rates
10-100-1000 Mbit/s
Maximum data transfer rate
1774 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Network
Spread spectrum method
DSSS-OFDM-OFDMA
Security
Cable lock slot
Yes
Security algorithms
WPA3-WPA-WPA2
Features
2.4 GHz
Yes
5 GHz
Yes
Auto MDI/MDI-X
Yes
Spread spectrum method
DSSS-OFDM-OFDMA
Ethernet LAN data rates
10-100-1000 Mbit/s
Maximum data transfer rate
1774 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Ports & interfaces
USB connector type
USB Type-A
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
1
Power
Power over Ethernet (PoE)
Yes
Design
Placement
Ceiling-Wall
Product colour
White
Cable lock slot
Yes
Cable lock slot type
Kensington
Antenna
Number of connectors
2
Antenna type
External
Antenna connector type
RP-SMA
Operational conditions
Operating relative humidity (H-H)
5 - 93%
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 93%
Weight & dimensions
Width
160 mm
Depth
161 mm
Weight
500 g
Height
37 mm

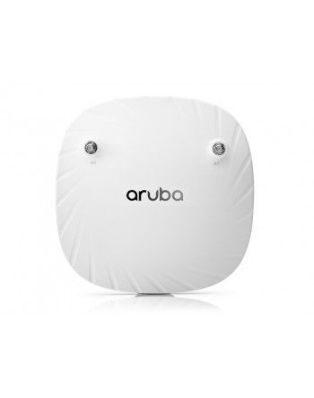

HPE Aruba AP-504 (RW) WLAN access point 1774 Mbit/s Power over Ethernet (PoE) White
Weight | 0.720000 lbs |
