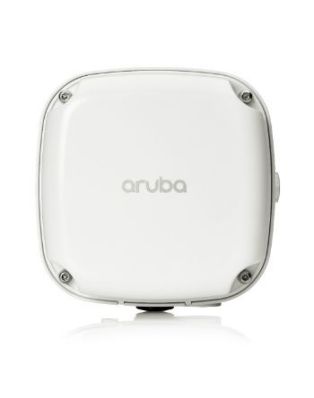

HPE Aruba AP-565 (RW) - Wireless access point - ZigBee, 802.11ac Wave 2, Bluetooth 5.0 - ZigBee, Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz - BTO
In Stock
|
Data transmission
Ethernet LAN data rates
101001000 Mbit/s
Maximum data transfer rate
1774 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Spread spectrum method
DSSSOFDMOFDMA
Ethernet LAN data rates
101001000 Mbit/s
Maximum data transfer rate
1774 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Network
Spread spectrum method
DSSSOFDMOFDMA
Features
2.4 GHz
Yes
5 GHz
Yes
Spread spectrum method
DSSSOFDMOFDMA
Maximum data transfer rate
1774 Mbit/s
Bluetooth
Yes
Bluetooth version
5
MDI / DMI-X automatic switchover
Yes
MIMO type
Multi User MIMO
MIMO
Yes
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Security
Security algorithms
WPA2WPA3
Ports & interfaces
USB connector type
USB Type-C
Ethernet LAN (RJ-45) ports
1
Power
Power consumption (max)
15.6 W
Power over Ethernet (PoE)
Yes
Design
Placement
Pole Wall
Product colour
White
Antenna
Antenna type
Internal
Antenna gain level (max)
5.4 dBi
Antenna direction type
Omni-directional
Antenna features
Integrated antenna
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-40 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Operating altitude
0 - 118110.2" (0 - 3000 m)
Software
MDI / DMI-X automatic switchover
Yes
Weight & dimensions
Width
6.5" (165 mm)
Depth
6.5" (165 mm)
Weight
2.27 lbs (1.03 kg)
Height
4.33" (110 mm)
HPE Aruba AP-565 (RW) - Wireless access point - ZigBee, 802.11ac Wave 2, Bluetooth 5.0 - ZigBee, Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz - BTO
| Length | 16.50 in |
| Width | 16.50 in |
| Height | 11.00 in |
| Weight | 1.030000 lbs |
