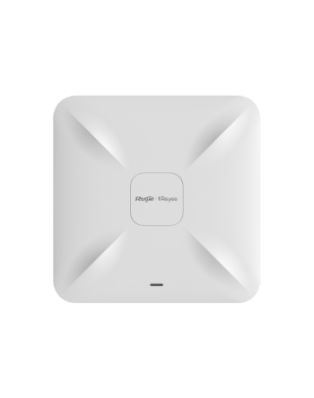

RUIJIE REYEE RG-RAP2200(F) AC1300 DUAL BAND CEILING MOUNT ACCESS POINT ETHERNET UPLINK PORT, INTERNAL ANTENNAS
In Stock
|
Radio
Dual-stream dual-band
Protocol
Concurrent 802.11ac wave2- wave1- 802.11a/b/g/n
Operating Bands
802.11b/g/n ï¼2.4G ~ 2.4835GHz
802.11a/n/ac ï¼ 5Gï¼5.150ï½5.350GHzï¼5.725ï½5.850GHz
Antenna
Array antennasï¼2.4G: 2dBiï¼5G: 2dBiï¼
Spatial Streams
2.4G 2x2MIMO 5G 2x2MIMO
Adjustable Power
1dBm
Dimensions
194mmÃ194mmÃ35mm (excluding mounting kits)
Weight
0.45kg (excluding mounting kits)
Service Ports
2 10/100 Base-T Ethernet ports- PoE/LAN1 port supports PoE
Management Port
NA
LED Indicator
NA
Power Supply
Single indicator (green light)
Power Consumption
Local power supply- DC 12V/1.5A (Note: The power adapter is sold as an optional accessory)
802.3af/802.3at PoE
Installation
Storage humidity: 5ï¼
ï½95ï¼
ï¼non-condensingï¼
Safety Standard
GB4943- IEC 60950-1
EMC Standard
GB9254ï¼EN301 489ï¼EN50155ï¼EN50121ï¼EN55032ï¼EN61000ï¼EN55035
Vibration Standard
IEC61373
Radio Standard
SRRC certification- EN300 328- EN301 893
MTBF
>400000H
Software Features
Operating Mode
AP mode and routing mode
Roaming
Support Layer 2 and Layer 3 roaming
Routing
Support static IP address- DHCP- PPPoE Dial Up
RUIJIE REYEE RG-RAP2200(F) AC1300 DUAL BAND CEILING MOUNT ACCESS POINT ETHERNET UPLINK PORT, INTERNAL ANTENNAS
