Wi-Fi data rate (max)
1733 Mbit/s
Ethernet LAN data rates
10-100-1000 Mbit/s
Maximum data transfer rate
1000 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi data rate (max)
1733 Mbit/s
Reset button
Yes
VLAN support
Yes
Rate limiting
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n-IEEE 802.3-IEEE 802.3ab-IEEE 802.3u
Ethernet LAN data rates
10-100-1000 Mbit/s
Certification
CE- FCC- IC
Maximum data transfer rate
1000 Mbit/s
Networking
Internal
No
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n-IEEE 802.3-IEEE 802.3ab-IEEE 802.3u
Management features
VLAN support
Yes
Rate limiting
Yes
Quality of Service (QoS) support
Yes
Certificates
Certification
CE- FCC- IC
Features
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi data rate (max)
1733 Mbit/s
VLAN support
Yes
Rate limiting
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n-IEEE 802.3-IEEE 802.3ab-IEEE 802.3u
Ethernet LAN data rates
10-100-1000 Mbit/s
Maximum data transfer rate
1000 Mbit/s
Security
Security algorithms
WEP-WPA-Enterprise-WPA-PSK
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Power
Power consumption (max)
20 W
Power over Ethernet (PoE)
Yes
Design
Product colour
White
Reset button
Yes
Internal
No
Certification
CE- FCC- IC
Antenna
Antennas quantity
2
Antenna gain level (max)
6 dBi
Technical details
Reset button
Yes
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-40 - 60 ‚°C
Weight & dimensions
Width
220 mm
Depth
48.1 mm
Weight
700 g
Height
220 mm

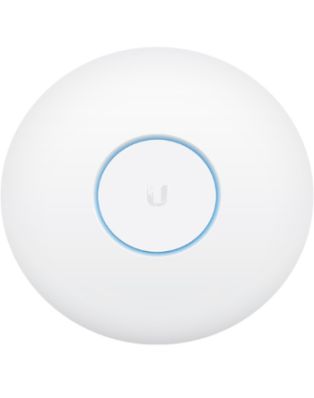

Ubiquiti Networks UAP-AC-SHD 802.11AC Wave 2 Access Point with Dedicated Security Radio (5-Pack)
Weight | 1.000000 lbs |
