Data transmission
Ethernet LAN data rates
10-100-1000 Mbit/s
Maximum data transfer rate
900 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Firmware upgradeable
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n
Modulation
16-QAM-64-QAM-BPSK
Ethernet LAN data rates
10-100-1000 Mbit/s
Maximum data transfer rate
900 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Wireless LAN features
Modulation
16-QAM-64-QAM-BPSK
Network
Internal
No
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n
Management features
Quality of Service (QoS) support
Yes
Firmware upgradeable
Yes
Features
2.4 GHz
Yes
5 GHz
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n
Modulation
16-QAM-64-QAM-BPSK
Ethernet LAN data rates
10-100-1000 Mbit/s
Maximum data transfer rate
900 Mbit/s
Maximum Likelihood Detection (MLD)
Yes
Maximal-Ratio Combining (MRC)
Yes
Cyclic Shift Diversity (CSD)
Yes
MIMO type
Multi User MIMO
MIMO
Yes
Security
Number of SSID supported
16
MAC address filtering
Yes
Protocols
Management protocols
SNMP v1/2c/3
Supported network protocols
IPv6
DHCP client
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power
Power over Ethernet (PoE)
Yes
Design
International Protection (IP) code
IP66
Placement
Pole- Wall
Product colour
White
Internal
No
Antenna
Number of connectors
6
Antenna connector type
N-type
Technical details
Firmware upgradeable
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
-40 - 60 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
10 - 95%
Software
Maximum Likelihood Detection (MLD)
Yes
Maximal-Ratio Combining (MRC)
Yes
Cyclic Shift Diversity (CSD)
Yes
Weight & dimensions
Width
255 mm
Depth
256 mm
Weight
1.71 kg
Height
62 mm
Package width
393 mm
Package depth
158 mm
Package height
430 mm
Package weight
3.9 kg
Packaging data
Mounting kit
Yes
PoE adapter included
Yes
Package width
393 mm
Package depth
158 mm
Package height
430 mm
Package weight
3.9 kg
Packaging content
Mounting kit
Yes
PoE adapter included
Yes

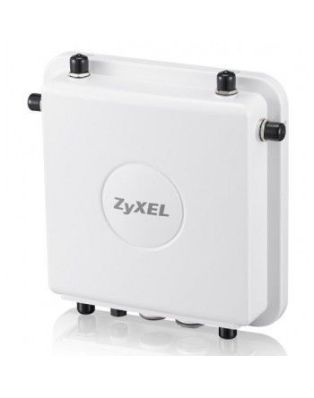

Zyxel WAC6553D-E WLAN access point 900 Mbit/s Power over Ethernet (PoE) White
Length | 25.60 in |
Width | 25.50 in |
Height | 6.20 in |
Weight | 1.710000 lbs |
