Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Ports & interfaces
Copper ethernet cabling technology
10BASE-T-100BASE-T
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Combo SFP ports quantity
1
Gigabit Ethernet (copper) ports quantity
1
Console port
RJ-45
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T-100BASE-T
VLAN support
Yes
Spanning tree protocol
Yes
Link aggregation
Yes
Virtual LAN features
VLAN support
Yes
Technical details
Product colour
Grey
Rack mounting
No
Data transmission
Jumbo frames
10000
Throughput
2.68 Mpps
MAC address table
16000 entries
Switching capacity
3.6 Gbit/s
Jumbo frames support
Yes
Security
BPDU filtering/protection
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Multicast features
Multicast support
Yes
Certificates
Certification
CE- cULus- TUV- RoHS
Memory
Memory type
DDR2-SDRAM
Internal memory
128 MB
Flash memory
128 MB
Design
Product colour
Grey
LED indicators
Yes
Certification
CE- cULus- TUV- RoHS
Rack mounting
No
Performance
Memory type
DDR2-SDRAM
Internal memory
128 MB
Flash memory
128 MB
Indication
LED indicators
Yes
Power
Power consumption (max)
6.3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 90%
Heat dissipation
22 BTU/h
Weight & dimensions
Width
210 mm
Depth
275 mm
Height
42.5 mm
Weight
2 kg

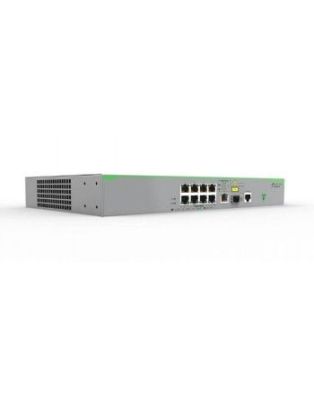

Allied Telesis AT-FS980M/9-50 Managed Fast Ethernet (10/100) Grey
Length | 27.50 in |
Width | 21.00 in |
Height | 4.25 in |
Weight | 2.000000 lbs |
