Ports & interfaces
Cable length
1.2 m
Console USB ports quantity
2
HDCP
Yes
USB connector type
Micro-USB B- USB Type-A
Number of microphone inputs
1
DisplayPorts quantity
1
DisplayPort version
1.1
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Audio connections
Yes
USB 2.0 ports quantity
2
Headphone outputs
1
Technical details
Product colour
Black
Rack mounting
No
Hot-Plug support
Yes
LED indicators
Yes
Sustainability certificates
RoHS
Performance
HDCP
Yes
HD type
4K Ultra HD
Video bandwidth
30 Hz
Hot-Plug support
Yes
Maximum resolution
4096 x 2160 pixels
Video
HD type
4K Ultra HD
Video bandwidth
30 Hz
Maximum resolution
4096 x 2160 pixels
Network
Ethernet LAN
No
Design
Wired remote switch
Yes
Remote switch cable length
1.8 m
Product colour
Black
Cable length
1.2 m
Rack mounting
No
LED indicators
Yes
Housing material
Plastic
Display
Built-in display
No
Power
Power source
DC
DC input voltage
5 V
USB powered
Yes
Power consumption (typical)
1.38 W
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
84.2 mm
Depth
83.4 mm
Height
30.4 mm
Weight
360 g

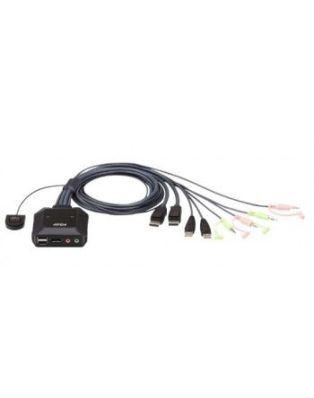

Aten CS22DP-AT KVM switch Black
| Weight | 1.000000 lbs |
