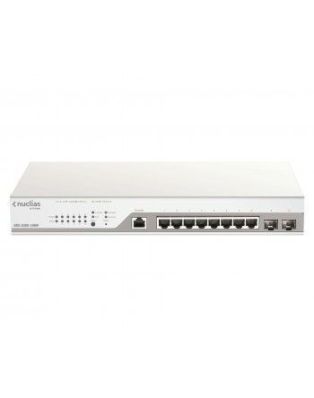

D-Link DBS-2000-10MP network switch Managed Gigabit Ethernet (10/100/1000) Grey Power over Ethernet (PoE)
In Stock
|
Ports & interfaces
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Console port
RJ-45
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Networking standards
IEEE 802.3adIEEE 802.3at
Spanning tree protocol
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
10G support
No
Performance
Packet buffer memory
4.1 MB
Processor frequency
500 MHz
Memory type
DDR3-SDRAM
Mean time between failures (MTBF)
1274005 h
Internal memory
256 MB
Flash memory
32 MB
Built-in processor
Yes
Technical details
Product colour
Grey
Processor frequency
500 MHz
Mean time between failures (MTBF)
1274005 h
Built-in processor
Yes
Shipping (inner) case width
11.6" (29.4 cm)
Shipping (inner) case net weight
22.5 lbs (10.2 kg)
Shipping (inner) case length
16.4" (41.6 cm)
Shipping (inner) case height
13.7" (34.9 cm)
Quantity per shipping (inner) case
3 pcs
Shipping (inner) case gross weight
24.3 lbs (11 kg)
Quantity per pallet (sea)
120 pcs
Quantity per pallet (air)
72 pcs
Pallet width
47.2" (120 cm)
Pallet length
43.3" (110 cm)
Pallet height (sea)
74" (188 cm)
Pallet height (air)
46.5" (118.2 cm)
Pallet gross weight (sea)
1010.6 lbs (458.4 kg)
Pallet gross weight (air)
622.8 lbs (282.5 kg)
Number of cartons per pallet (sea)
40
Number of cartons per pallet (air)
24
Management features
Switch type
Managed
Web-based management
Yes
Data transmission
Packet buffer memory
4.1 MB
Switching capacity
20 Gbit/s
Forwarding rate
14.88 Mpps
Security
Security algorithms
WPA3WPAWPA2
IGMP snooping
Yes
Memory
Packet buffer memory
4.1 MB
Memory type
DDR3-SDRAM
Internal memory
256 MB
Flash memory
32 MB
Design
Product colour
Grey
LED indicators
Yes
Indication
LED indicators
Yes
Power
Power consumption (max)
152.3 W
AC input voltage
100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
130 W
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Operating altitude
0 - 59055.1" (0 - 1500 m)
Heat dissipation
519.51 BTU/h
Weight & dimensions
Width
13" (330 mm)
Depth
7.09" (180 mm)
Height
1.73" (44 mm)
Weight
3.9 lbs (1.77 kg)
D-Link DBS-2000-10MP network switch Managed Gigabit Ethernet (10/100/1000) Grey Power over Ethernet (PoE)
| Length | 18.00 in |
| Width | 33.00 in |
| Height | 4.40 in |
| Weight | 1.770000 lbs |
